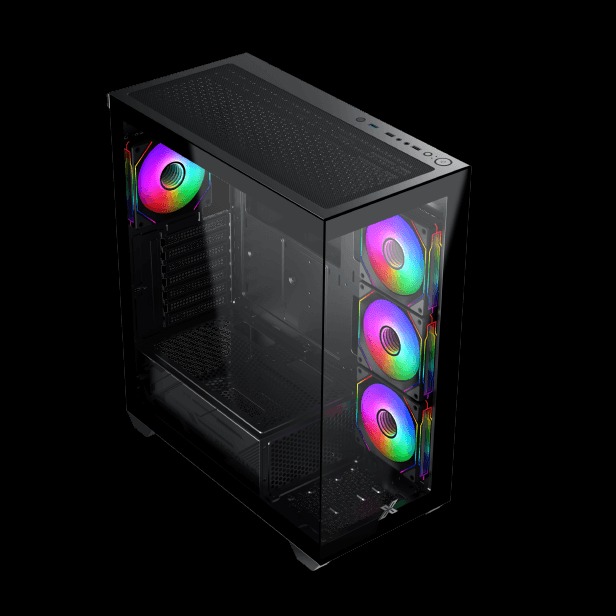

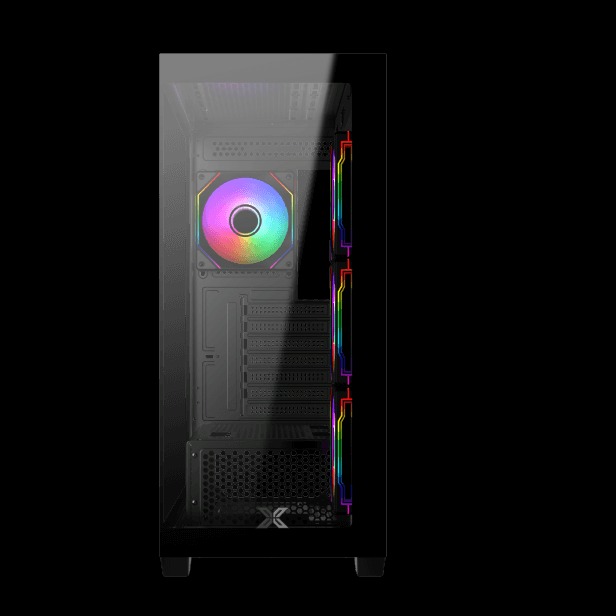

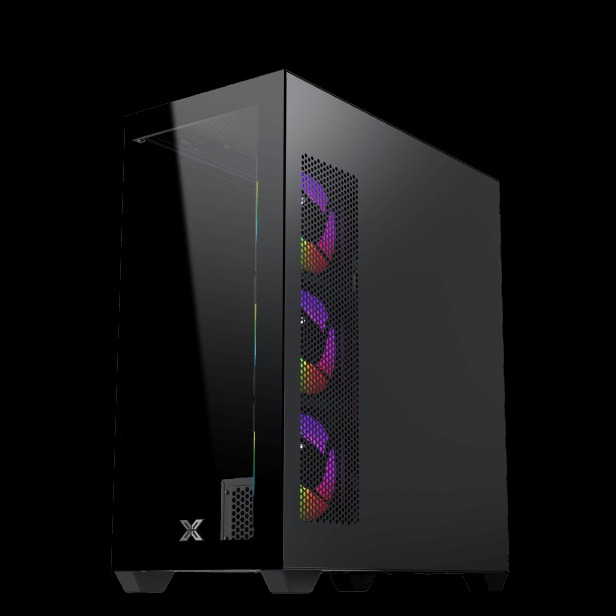

Product Name
Blast 4GF
Dimensions
425x212x490mm (LxWxH)
Motherboard Support
E-ATX, ATX, Micro ATX, Mini ITX
Drive Bays
HDD Cage(Top): 3.5” x1
HDD Cage(Bottom): 2.5” x1
Bottom Panel: 3.5” & 2.5” Combo x1
Fan Support
Top: 120mm x3 or 140mm x2
MB Panel: 120mm x3
(E-ATX MB Width ≤28.5cm)
PSU Shroud: 120mm x2
Bottom: 120mm x1
(No 2.5” or 3.5” SSD/HDD)
Rear: 120mm x1
PSU Length Limitation
200mm
Material
Steel
Expansion Slots
9 Standard Slots
Power Supply
Standard PS2
ATX PSU
I/O Panel
USB 3.0 x 1
USB 2.0 x 2
HD Audio
Radiator Support
Top: 280/360
MN Panel: 360
(E-ATX MB Width ≤28.5cm)
Rear: 120
CPU Cooler Clearance
165mm
GPU Length Limitation
285mm
(Fan on MB Panel)
410mm
(No Fan on MB Panel)
