Product Name

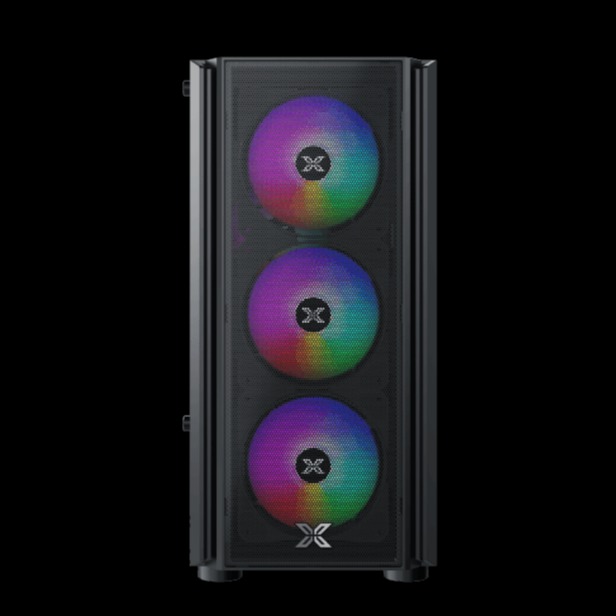

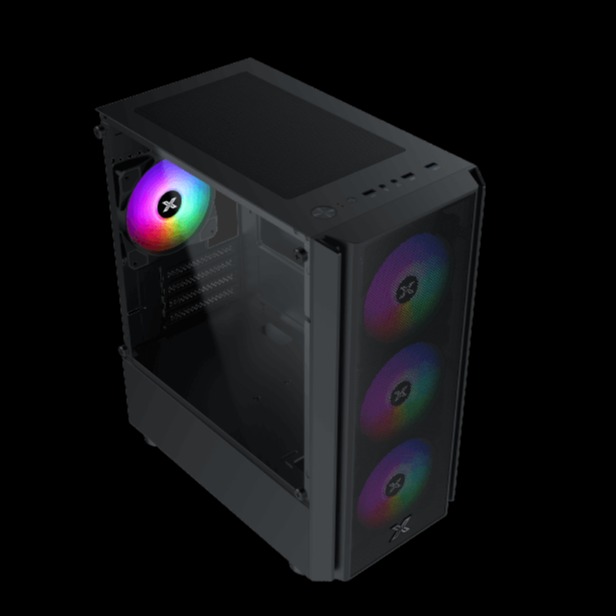

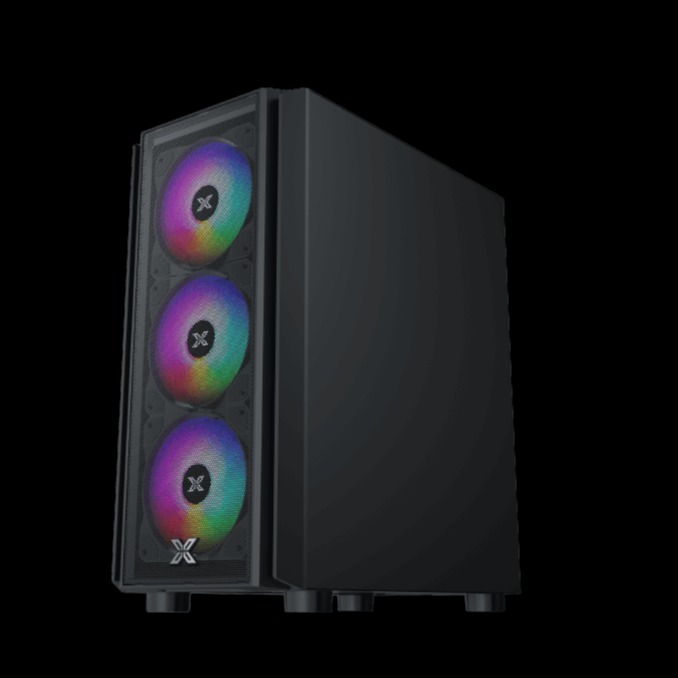

NYX Air
Material
STEEL
Dimension
365 x 200 x 426mm (LxWxH)
SSD / HDD
HDD Cage: 3.5” HDD x2 or
3.5” HDD x1 & 2.5” SSD x1
MB Panel: 2.5″ SSD x2
PSU Shroud: 3.5” HDD x1
(No HDD or 2.5” SSD x1 on the Top of HDD Cage)
PCI Slot
7 Standard Slots
Motherboard Support
M-ATX, MINI-ITX
Power Supply
Standard PS2 ATX PSU
Fan Support
Front: 120mm x3 (Pre-Installed) or 140mm x2
Rear: 120mm x1 (Pre-Installed)
Top: 120mm x2
Liquid Cooling Support
Front:240mm
Top: 240mm
I/O Panel
USB3.0 x1, USB2.0 x2, HD Audio
CPU Cooler
160mm
VGA Length
320mm
PSU Length
165mm
