| Specification | Details |
|---|---|

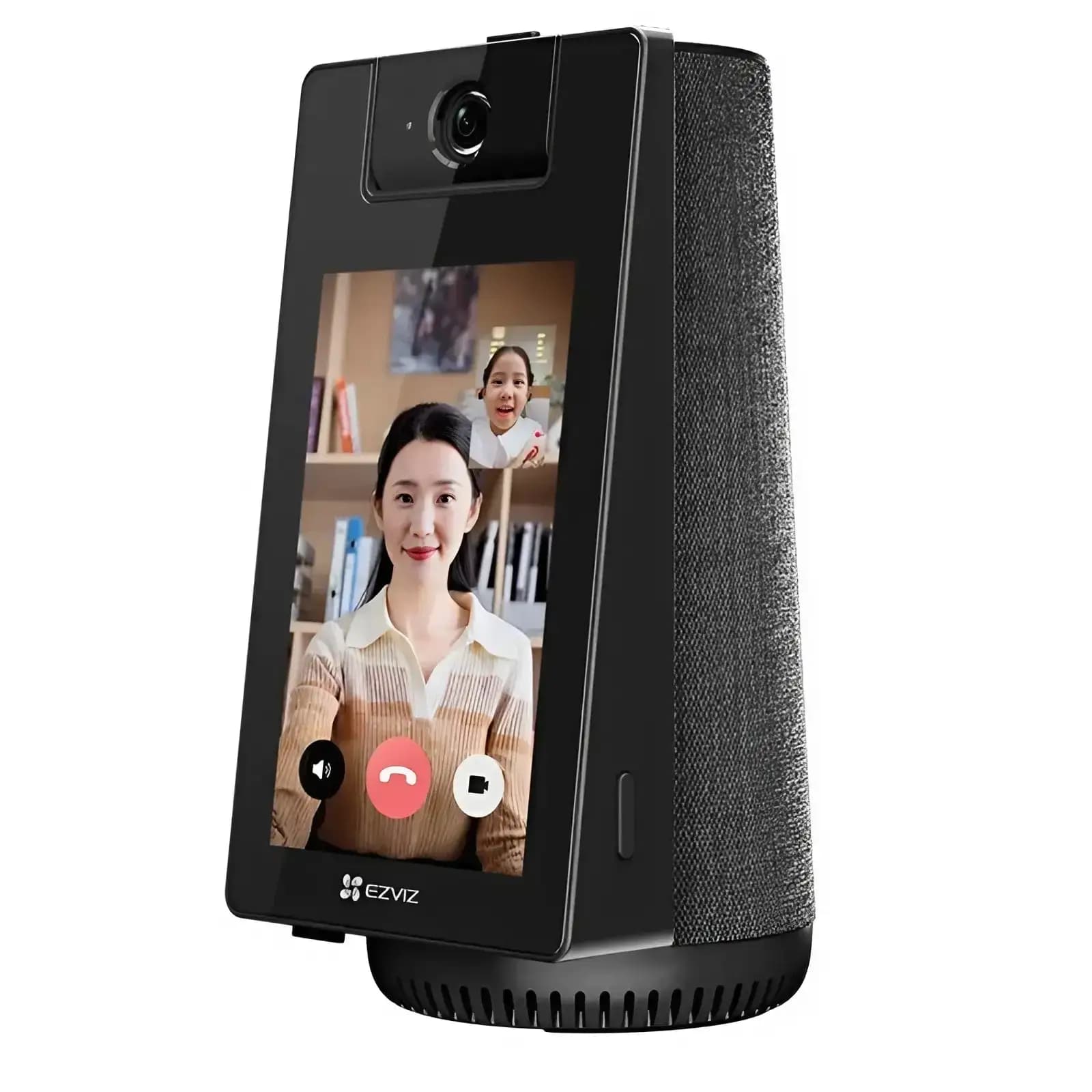

| Model | EZVIZ S10 (CS-S10-R100-1M4WFK) |
| Type | Smart video calling PT camera with touchscreen |
| Resolution | 2K+ (1504 × 2672 / ~4MP) |
| Image sensor | 1/3" Progressive Scan CMOS |
| Lens | 4mm F1.6 fixed lens |
| Field of view | ~100° diagonal / 84° horizontal |
| Pan / Tilt | 340° pan / 37° tilt |
| Display | 4-inch touchscreen (480 × 800) |
| Night vision | IR night vision up to ~10 m |
| AI detection | Human detection, pet detection, sound detection |
| Audio | Two-way talk + 2-mic array + 3W speaker |
| Video compression | H.264 / H.265 |
| Frame rate | Adaptive (depends on network) |
| Wi-Fi | 2.4 GHz + 5 GHz dual-band Wi-Fi |
| Smart features | Video calling, voice assistant support |
| Storage | MicroSD up to 512 GB + EZVIZ Cloud |
| Power | 5V / 2A (wired) |
| Power consumption | Max ~8W |
| Installation | Indoor tabletop or wall mount |
| Operating temp | approx. −10°C to 40°C |
| Size | 75 × 75 × 146 mm |
