| Specification | Value |
|---|---|

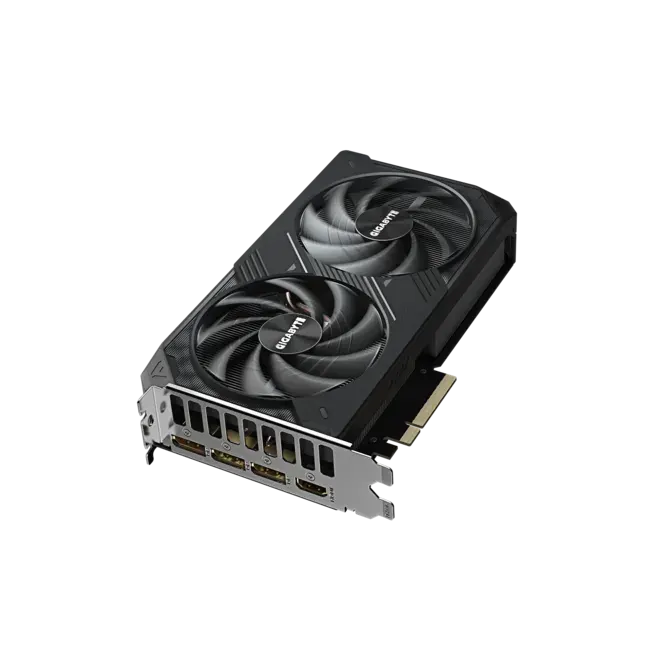

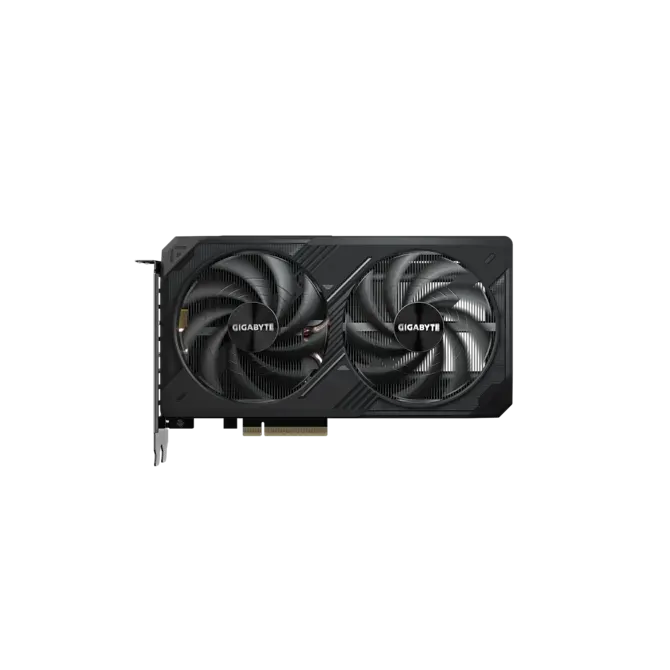

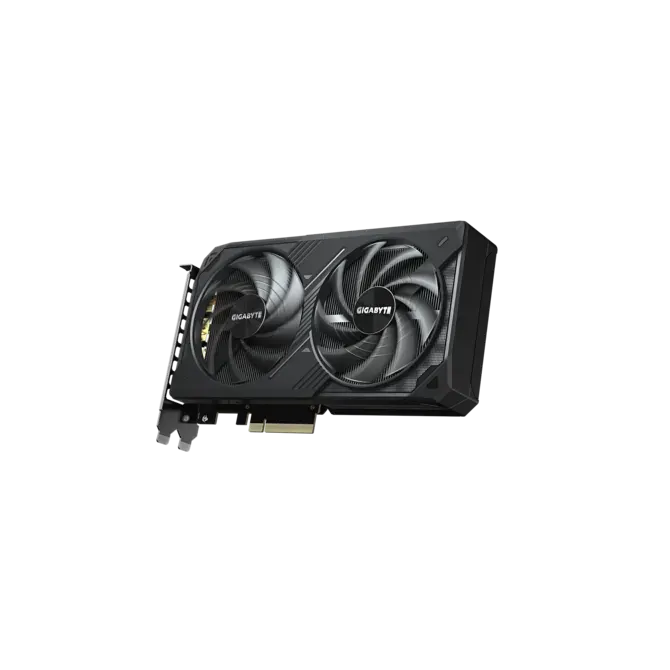

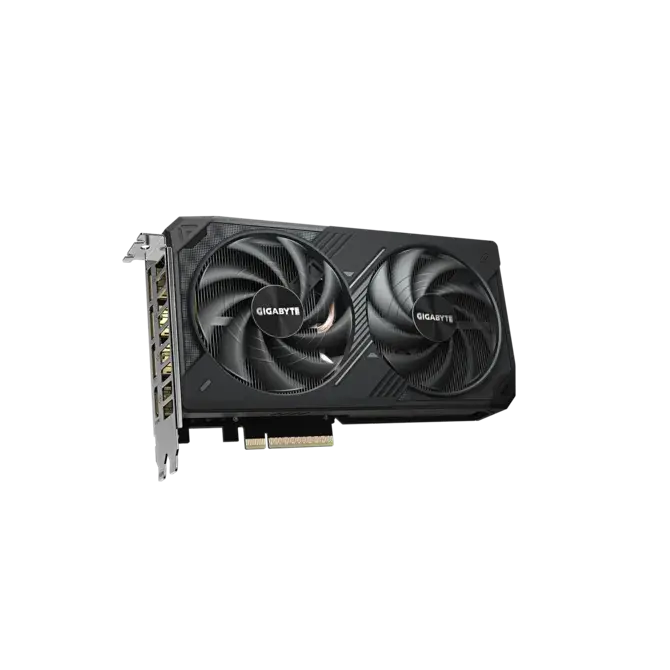

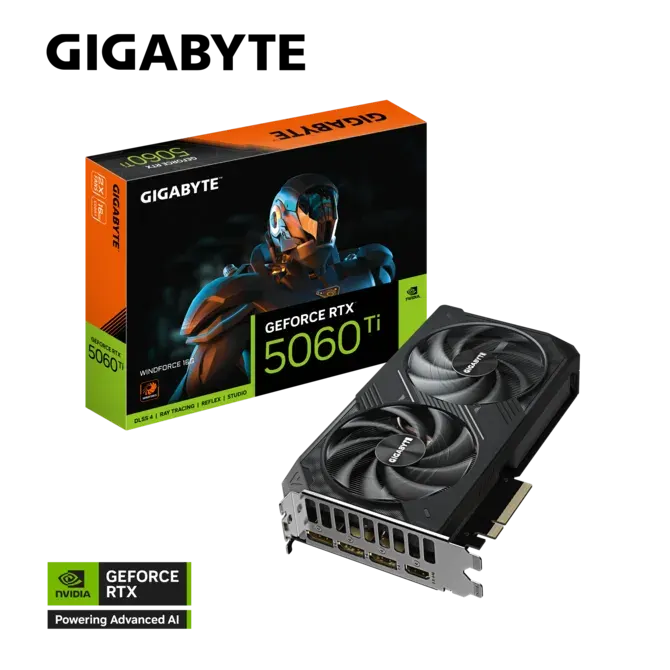

| Model | GeForce RTX™ 5060 Ti WINDFORCE 16G |
| Graphics Processing | NVIDIA GeForce RTX 5060 Ti |
| Memory Size | 16GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Speed | 28 Gbps |
| CUDA Cores | 4608 |
| Interface | PCI Express 5.0 x8 |
| Core Clock | 2572 MHz (Boost Clock) |
| Output Ports | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
| Maximum Digital Resolution | 7680 × 4320 |
| Multi-Display Support | Up to 4 Displays |
| DirectX Support | DirectX 12 Ultimate |
| OpenGL Support | OpenGL 4.6 |
| Recommended PSU | 650W |
| Power Connector | 1 × 8-Pin PCIe |
| Cooling System | WINDFORCE Dual-Fan Cooling |
| Fan Type | Hawk Fan Design |

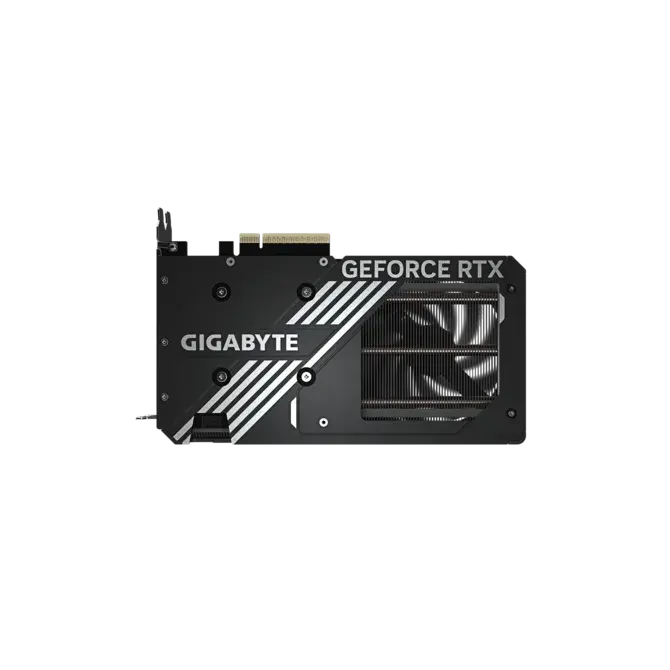

| Backplate | Metal Back Plate |
| Card Dimensions | 208 × 120 × 40 mm |
| Slot Size | 2-Slot |
| RGB Lighting | No |
| AI Features | NVIDIA DLSS 4, Multi Frame Generation |
| Ray Tracing | 4th Generation Ray Tracing Cores |
| AI Processing | 5th Generation Tensor Cores |
