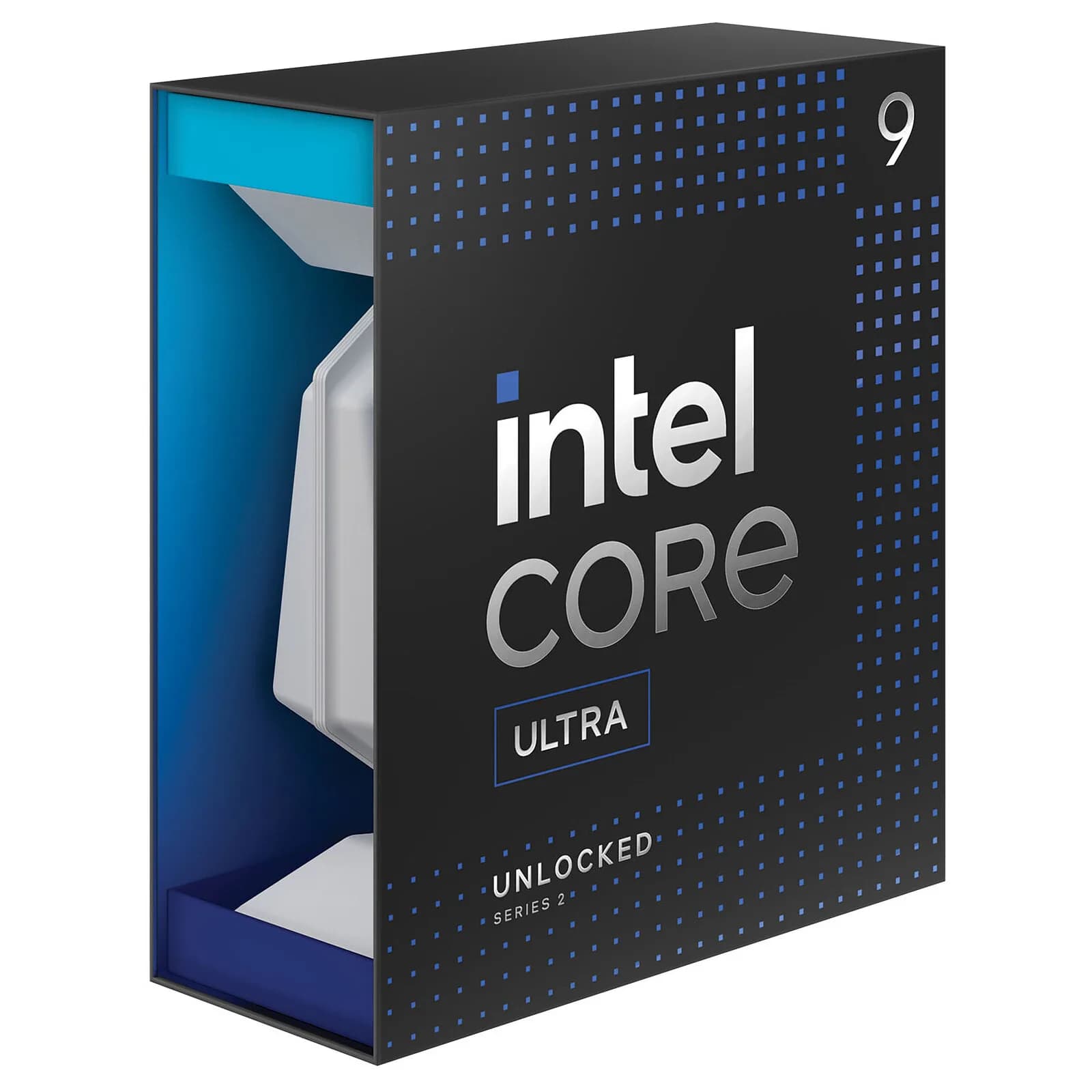

| Specification | Intel Core Ultra 9 285K |
|---|---|
| Architecture | Arrow Lake (Core Ultra Series 2) |
| Socket | LGA 1851 |
| Cores | 24 (8 Performance + 16 Efficient) |
| Threads | 24 |
| Max Turbo Clock | Up to 5.7 GHz |
| Base Clock | 3.7 GHz (P-cores) |
| L3 Cache | 36 MB Intel Smart Cache |
| L2 Cache | 40 MB |
| Lithography | Intel 3 (TSMC N3B) |
| TDP (Base Power) | 125 W |
| Max Turbo Power | Up to 250 W |
| Integrated Graphics | Intel Arc (Xe-based iGPU) |
| NPU | Intel AI Boost (up to 13 TOPS) |
| Memory Support | DDR5 up to 6400 MT/s |
| Max Memory Capacity | 256 GB |
| PCIe Support | PCIe 5.0 & 4.0 |
| PCIe Lanes | Up to 24 |
| Overclocking | Yes (Unlocked “K”) |
