| Specification | Details |
|---|---|

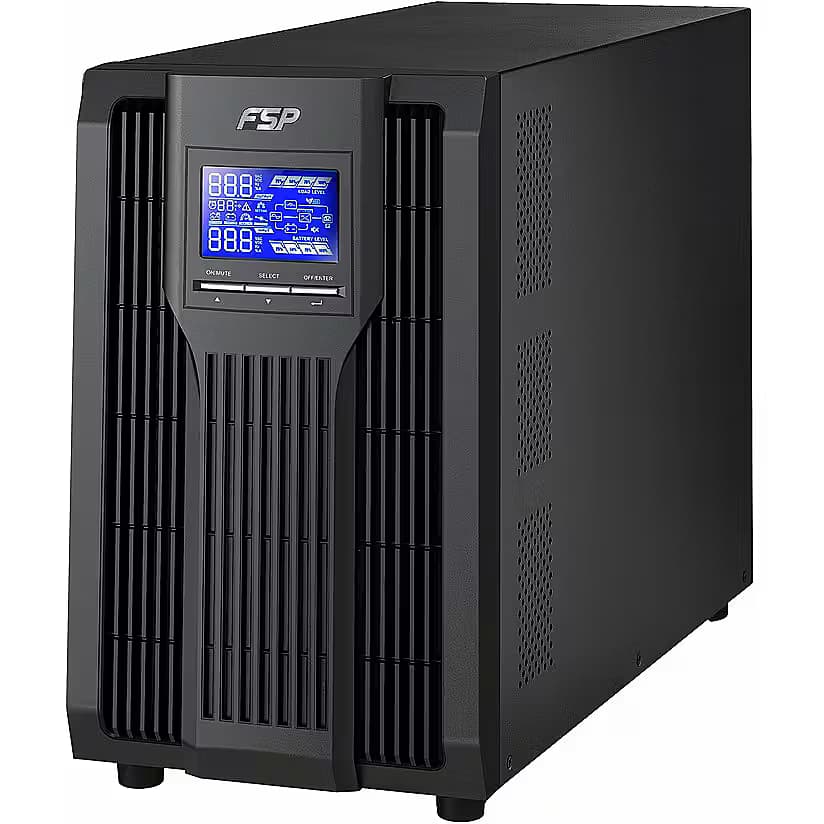

| Model | FSP Champ Tower 3K |
| UPS Type | Online Double-Conversion UPS |
| Capacity | 3000 VA / 2700 W |
| Output Power Factor | 0.9 |
| Input Voltage Range | 100/110/115/120/127 VAC or 200/208/220/230/240 VAC |
| Input Frequency Range | 40 Hz – 70 Hz |
| Output Voltage Regulation | ±1% |
| Output Frequency | 50 Hz or 60 Hz ±0.5% |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 0 ms (Typical) |
| Battery Type | 12 V / 9 Ah |
| Number of Batteries | 6 |
| Recharge Time | 4 hours to 90% capacity |
| Communication Ports | USB, RS-232, SNMP (optional) |
| Features | ECO Mode, Generator Compatible, LCD Display |
| Noise Level | Less than 50 dBA @ 1 meter |
| Dimensions (L × W × H) | 421 × 190 × 318 mm |
| Weight | 27.6 kg |
| Operating Humidity | 20–90% RH (non-condensing) |
| Topology | True Double Conversion |
| Efficiency Features | Input Power Factor Correction |
