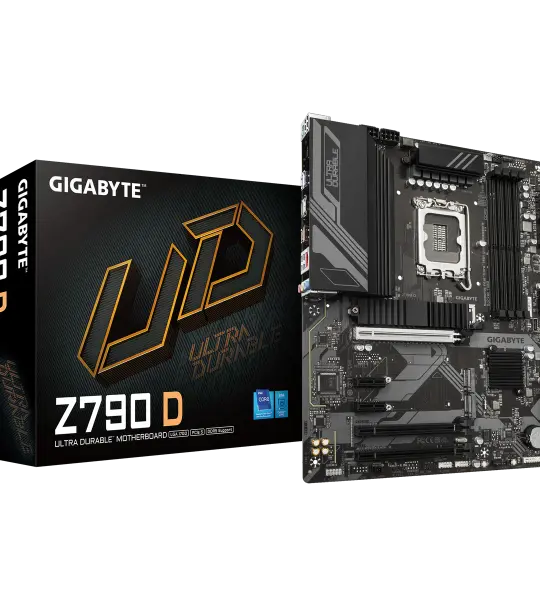

Feature Specification CPU & Chipset Intel LGA 1700 socket; supports 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors; Intel Z790 chipset VRM & Power Design 16+1+1 phases digital VRM; 6-layer PCB with 2X copper; 8+8 phases parallel power design Memory (RAM) 4 × DDR4 DIMM slots (dual-channel); up to 128 GB; supports XMP 3.0 memory modules Storage 3 × PCIe 4.0 ×4 M.2 slots with Thermal Guard; 6 × SATA 6 Gb/s ports (RAID 0/1/5/10) Expansion Slots 1 × PCIe 5.0 ×16 slot (reinforced); 2 × PCIe 4.0 ×16 slots; 2 × PCIe 3.0 ×1 slots Networking 2.5 GbE LAN; no Wi-Fi Rear I/O Ports 2 × USB 2.0; 4 × USB 3.2 Gen 1; 1 × USB 3.2 Gen 2; 1 × USB 3.2 Gen 2x2 Type-C; 1 × HDMI 2.0; 1 × DisplayPort; 1 × RJ-45 LAN; 3 × audio jacks; 1 × S/PDIF; 1 × Q-Flash Plus button Internal Headers 1 × USB 3.2 Gen 1 Type-C; 2 × USB 3.2 Gen 1; 2 × USB 2.0; 1 × USB 3.2 Gen 2x2 Type-C; 1 × USB 3.2 Gen 2; 1 × RGB LED header; 1 × Addressable LED header; 1 × TPM header; 1 × Clear CMOS jumper Audio Realtek ALC897 codec; 7.1-channel HD audio; high-end audio capacitors; S/PDIF out Cooling & DIY Features Smart Fan 6; multiple temperature sensors; hybrid fan headers with FAN STOP; EZ-Latch PCIe 4.0 ×16 slot with quick release design; M.2 Thermal Guard Form Factor ATX (305 × 244 mm) Special Features Multi-key (configurable BIOS functions); Q-Flash Plus (BIOS update without CPU, memory, or graphics card); RGB Fusion (addressable and RGB LED headers)

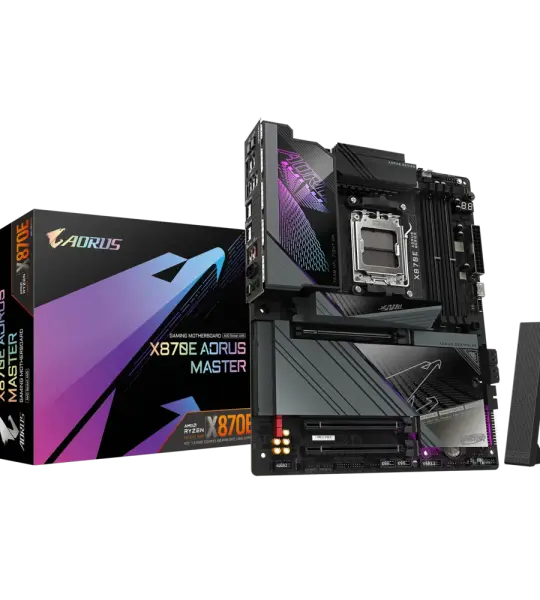

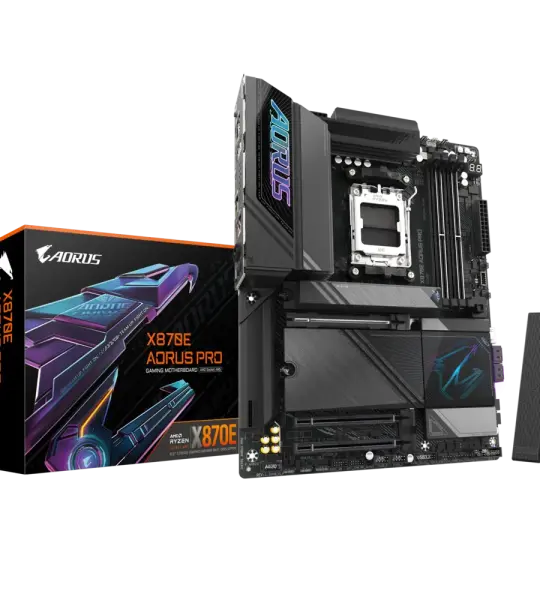

Feature Specification CPU & Chipset AMD Socket AM5; supports Ryzen 7000 / 8000 / 9000 Series; AMD X870E chipset VRM & Power Design 16+2+2 Digital Twin VRM; 80A Smart Power Stages; 6-layer PCB with 2× copper Memory (RAM) 4 × DDR5 DIMM slots (dual-channel); up to 256 GB; speeds up to DDR5-8000 OC; supports AMD EXPO & Intel XMP Storage 3 × M.2 slots (3 × PCIe 5.0 ×4); 1 × M.2 slot (PCIe 4.0 ×4); 4 × SATA 6 Gb/s (RAID 0/1/10) Expansion Slots 1 × PCIe 5.0 ×16 (reinforced PCIe UD Slot); 1 × PCIe 4.0 ×4; 1 × PCIe 3.0 ×4 Networking 2.5 GbE LAN; Wi-Fi 7 with ultra-high gain antenna; Bluetooth 5.4 Rear I/O Ports 2 × USB4 Type-C (DP-Alt); 1 × USB 3.2 Gen2; 3 × USB 3.2 Gen1; 4 × USB 2.0; HDMI 2.1; S/PDIF; Q-Flash Plus button Internal Headers Front USB-C 20Gb/s; USB 3.2 Gen1/2 headers; USB 2.0 headers; RGB/ARGB headers; multiple fan/pump headers Audio Realtek ALC1220 codec; 8-channel HD audio; audiophile-grade capacitors; S/PDIF out Cooling & DIY Features VRM Thermal Armor Advanced; M.2 Thermal Guard L; M.2 Thermal Guard Extended; EZ-Latch Plus (PCIe & M.2 tool-less); EZ-Latch Click; EZ-Debug Zone; Smart Fan 6; Wi-Fi EZ-Plug Form Factor ATX (305 × 244 mm) Special Features AORUS AI SNATCH (one-click DDR5 performance boost); Q-Flash Plus; Windows 11 support
Feature Specification CPU & Chipset AMD Socket AM5; supports Ryzen 7000 / 8000 / 9000 Series; AMD X870E chipset VRM & Power Design 16+2+2 Digital Twin VRM; 110A SPS power stages Memory (RAM) 4 × DDR5 DIMM slots (dual-channel); up to 256 GB; speeds up to DDR5-8600 OC; supports AMD EXPO & Intel XMP Storage 3 × M.2 slots (3 × PCIe 5.0 ×4); 4 × SATA 6 Gb/s (RAID 0/1/10) Expansion Slots 1 × PCIe 5.0 ×16 (reinforced PCIe UD Slot); additional PCIe 4.0/3.0 slots Networking 5 GbE LAN; Wi-Fi 7 with ultra-high gain antenna; Bluetooth 5.4 Rear I/O Ports 2 × USB4 Type-C (DP-Alt); 4 × USB 3.2 Gen2; 4 × USB 3.2 Gen1; 2 × USB 2.0; HDMI 2.1; S/PDIF; Q-Flash Plus button Internal Headers Front USB-C 20Gb/s; USB 3.2 Gen1/2 headers; USB 2.0 headers; RGB/ARGB headers; multiple fan/pump headers Audio Realtek ALC1220 codec; 8-channel HD audio; audiophile-grade capacitors; S/PDIF out Cooling & DIY Features VRM Thermal Armor; M.2 Thermal Guard; EZ-Latch Plus (PCIe & M.2 tool-less); EZ-Latch Click; EZ-Debug Zone; Smart Fan 6; Wi-Fi EZ-Plug Form Factor ATX (305 × 244 mm) Special Features AORUS AI SNATCH (one-click DDR5 performance boost); Q-Flash Plus; Windows 11 support

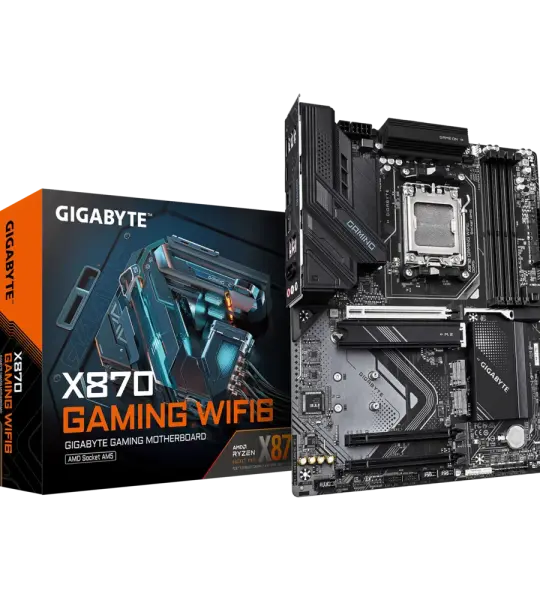

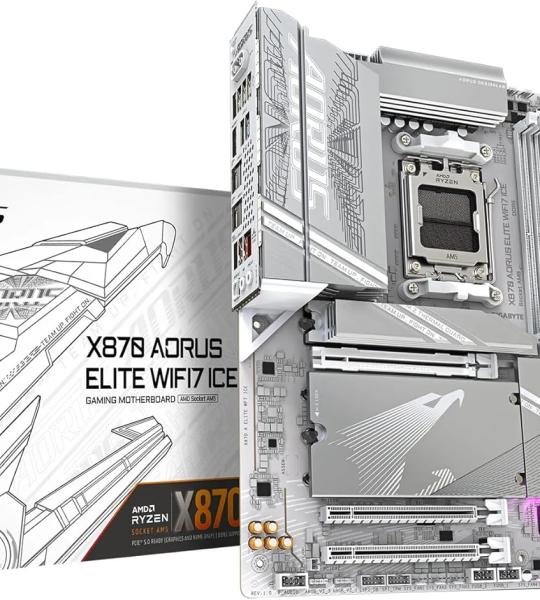

Feature Specification CPU & Chipset AMD Socket AM5; supports Ryzen 7000 / 8000 / 9000 Series; AMD X870 chipset VRM & Power Design 14+2+2 Digital Twin VRM power phase design Memory (RAM) 4 × DDR5 DIMM slots (dual-channel), up to 256 GB, speeds up to DDR5-8200 OC; supports AMD EXPO & Intel XMP Storage 3 × M.2 slots (1 × PCIe 5.0 ×4, 2 × PCIe 4.0 ×4); 4 × SATA 6 Gb/s (RAID 0/1/10) Expansion Slots 1 × PCIe 5.0 ×16 (reinforced PCIe UD Slot), additional PCIe 4.0/3.0 slots Networking 2.5 GbE LAN, Wi-Fi 7, Bluetooth 5.4 Rear I/O Ports 2 × USB4 Type-C (DP-Alt), 1 × USB 3.2 Gen2, 3 × USB 3.2 Gen1, 4 × USB 2.0, HDMI 2.1, RJ-45 LAN, Audio jacks + S/PDIF, Q-Flash Plus button Internal Headers Front USB-C 3.2 Gen2x2, USB 3.2 Gen1 headers, USB 2.0 headers, RGB/ARGB headers, multiple fan/pump headers Audio 8-channel HD audio, premium capacitors, S/PDIF out Cooling & DIY Features VRM Thermal Armor, M.2 Thermal Guard, EZ-Latch Plus (PCIe & M.2 tool-less), EZ-Latch Click, EZ-Debug Zone, Smart Fan 6 Form Factor ATX (305 × 244 mm) Special Features RGB Fusion, AORUS AI SNATCH (DDR5 auto-tuning), Q-Flash Plus, multiple over-current/over-temp protections, Windows 11 support

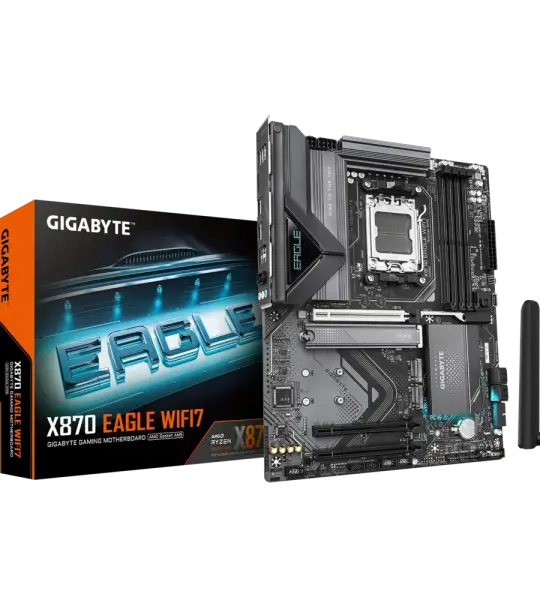

Feature Specification CPU & Chipset AMD Socket AM5; supports Ryzen 7000 / 8000 / 9000 Series; AMD X870 chipset Memory (RAM) 4 × DDR5 DIMM (dual-channel), up to 256 GB (64 GB per slot); speeds up to DDR5-8200 OC; supports AMD EXPO & Intel XMP VRM & PCB 16+2+2 Digital Twin VRM design; 6-layer PCB with 2× copper; VRM Thermal Armor Advanced & M.2 Thermal Guard L Storage 4 × M.2 slots (3 × PCIe 5.0 ×4, 1 × PCIe 4.0 ×4); 4 × SATA 6 Gb/s (RAID 0/1/5/10) Expansion Slots 1 × PCIe 5.0 ×16 (reinforced PCIe UD Slot X), 1 × PCIe 4.0 ×4, 1 × PCIe 3.0 ×2 I/O Ports (Rear) 2 × USB4 Type-C (DP-Alt), 2 × USB 3.2 Gen2, 4 × USB 3.2 Gen1, 4 × USB 2.0, HDMI 2.1, audio jacks + S/PDIF, Q-Flash Plus button, 1 × 2.5 GbE LAN Internal Headers Front USB-C 3.2 Gen2x2, USB 3.2 Gen1 headers, USB 2.0 headers, Sensor Panel Link HDMI output Networking 2.5 GbE LAN, Wi-Fi 7, Bluetooth 5.4 Audio Realtek ALC1220 codec, 7.1-channel HD audio, audiophile-grade capacitors, S/PDIF out Cooling & DIY Features EZ-Latch Plus (PCIe & M.2 tool-less design), EZ-Latch Click, EZ-Debug Zone, Wi-Fi EZ-Plug, Smart Fan 6 with 8 headers, Q-Flash Plus Graphics Output HDMI 2.1 (up to 4K @60 Hz), USB4 Type-C supports up to 4K @240 Hz Form Factor ATX (305 × 244 mm) Special Features PCIe UD Slot X (10× strength), RGB/ARGB headers, Active OC Tuner in BIOS, AORUS Control Center, Windows 11 support

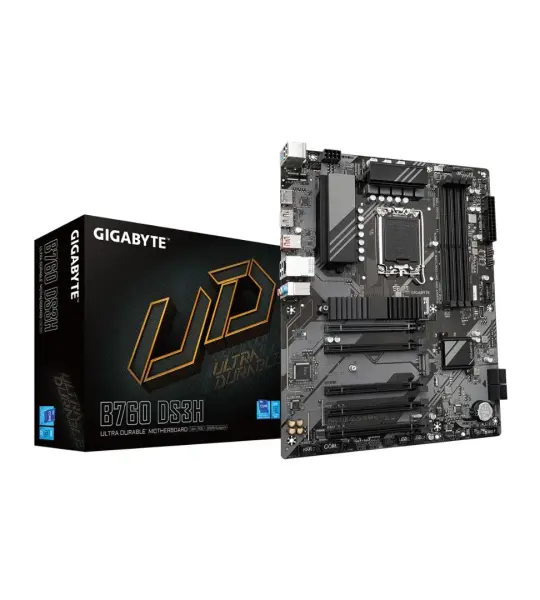

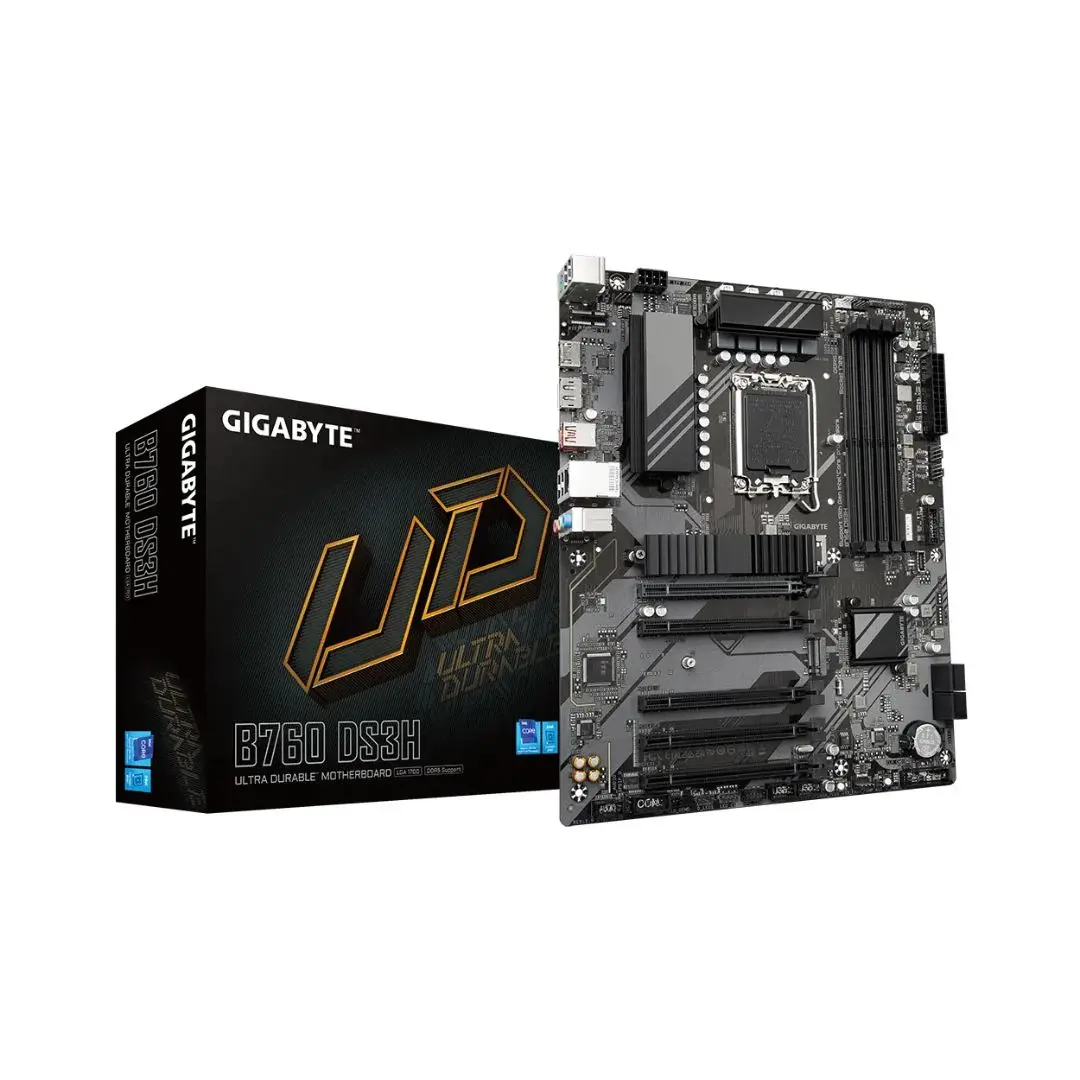

Feature Specification Chipset Intel B760 CPU Support Intel 12th, 13th, and 14th Gen Core, Pentium Gold, Celeron (LGA 1700 socket) Memory Support 4× DDR5 DIMM slots, up to 192GB, Dual Channel, up to 7600MT/s (OC) Expansion Slots 1× PCIe 4.0 x16, 1× PCIe 3.0 x16 (x4), 1× PCIe 3.0 x1 Storage 2× M.2 (PCIe 4.0 x4 / PCIe 3.0 x4), 4× SATA 6Gb/s Graphics Outputs 1× HDMI 2.1, 1× DisplayPort 1.2, 1× D-Sub Audio Realtek 8-Channel HD Audio Networking Realtek 2.5GbE LAN USB Ports (Rear) 1× USB-C 3.2 Gen2, 2× USB-A 3.2 Gen2, 4× USB-A 2.0 USB Ports (Internal) Supports front-panel USB-C 3.2 Gen1, USB-A 3.2 Gen1, USB 2.0 Form Factor ATX Power Phase Design 6+2+1 VRM Other Features Q-Flash, Smart Fan 6, PCIe EZ-Latch

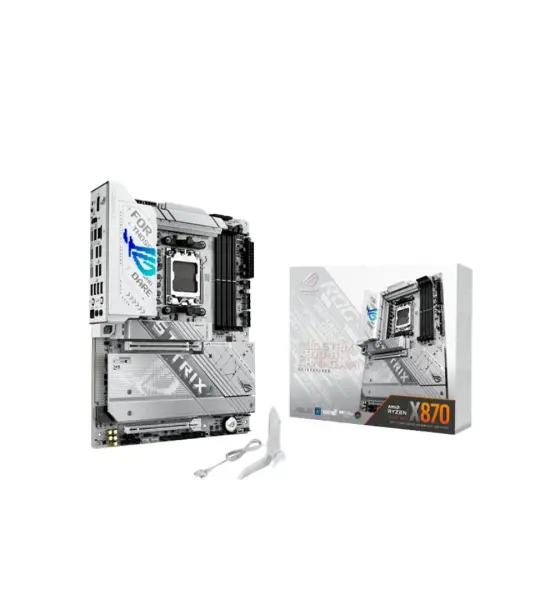

Category Details Chipset AMD X870 CPU Support AMD Ryzen 9000 Series (Zen 5) & Ryzen 7000 (AM5) Socket AM5 Form Factor ATX Memory Support 4× DDR5 DIMM, up to 192GB, up to 8000+ MT/s (OC), Dual Channel, AMD EXPO & Intel XMP PCIe Slots 1× PCIe 5.0 x16 (GPU), 1× PCIe 4.0 x16 (x4), 2× PCIe 4.0 x1 M.2 Slots 1× PCIe 5.0 x4, 3× PCIe 4.0 x4 SATA Ports 4× SATA 6Gb/s Networking (LAN) Intel 2.5Gb Ethernet Wireless WiFi 7, Bluetooth 5.4 USB Ports (Rear I/O) 1× USB 3.2 Gen 2x2 (20Gbps Type-C), 2× USB 3.2 Gen 2 (10Gbps), 4× USB 3.2 Gen 1, 4× USB 2.0 Audio ROG SupremeFX 7.1 HD Audio Codec ALC4080, DTS Sound Unbound Power Stages 16+2 Power Stages, ProCool II connectors, Alloy Chokes, Durable Capacitors Cooling Features Large VRM heatsinks, multiple fan headers, hybrid fan control, M.2 heatsinks RGB ASUS Aura Sync RGB Lighting, RGB & ARGB headers Expansion Q-Release PCIe Slot, Q-Latch for M.2 Dimensions ATX – 30.5 cm × 24.4 cm
Feature Details Chipset / Socket AMD B650 / AM5 — supports Ryzen 7000 / 8000 / 9000 series CPUs Form Factor ATX (305 × 244 mm) Memory Support 4× DDR5 DIMM slots, up to 192 GB, supports DDR5 up to 7200+ MHz (OC) with AMD EXPO Power Delivery 12+2+1 digital phases (Core/SOC/MISC) with MSI Core Boost design Expansion / PCIe Slots 2× PCIe 4.0 ×16 (CPU-driven x16/x4), 1× PCIe 4.0 ×16 (×4 lanes from chipset), 1× PCIe 3.0 ×1 slot Storage 2× M.2 PCIe 4.0 x4 slots, 4× SATA 6 Gb/s ports; RAID 0/1 support for SATA and M.2 Networking Realtek 8125BG 2.5 Gb Ethernet; onboard Wi‑Fi 6E & Bluetooth 5.3 module in M.2 Key‑E slot USB Connectivity Rear: USB 3.2 Gen2×2 (Type‑C, 20 Gbps), 3× USB 3.2 Gen2, 4× USB 3.2 Gen1; internal headers for USB 3.2/USB 2.0, and front Type‑C Video Outputs HDMI 2.1, DisplayPort 1.4 (requires compatible CPU iGPU) Audio Realtek ALC897 7.1-channel HD Audio codec, shielded design Cooling & Design Features Extended heatsink, M.2 Shield Frozr, FROZR AI Cooling, EZ Debug LEDs, Flash BIOS button, 6‑layer PCB with thick copper Software & Utilities MSI FROZR AI cooling tech, Armory CRATE utilities, BIOS Flashback, Core Boost power tuning Warranty 3 years (region dependent)

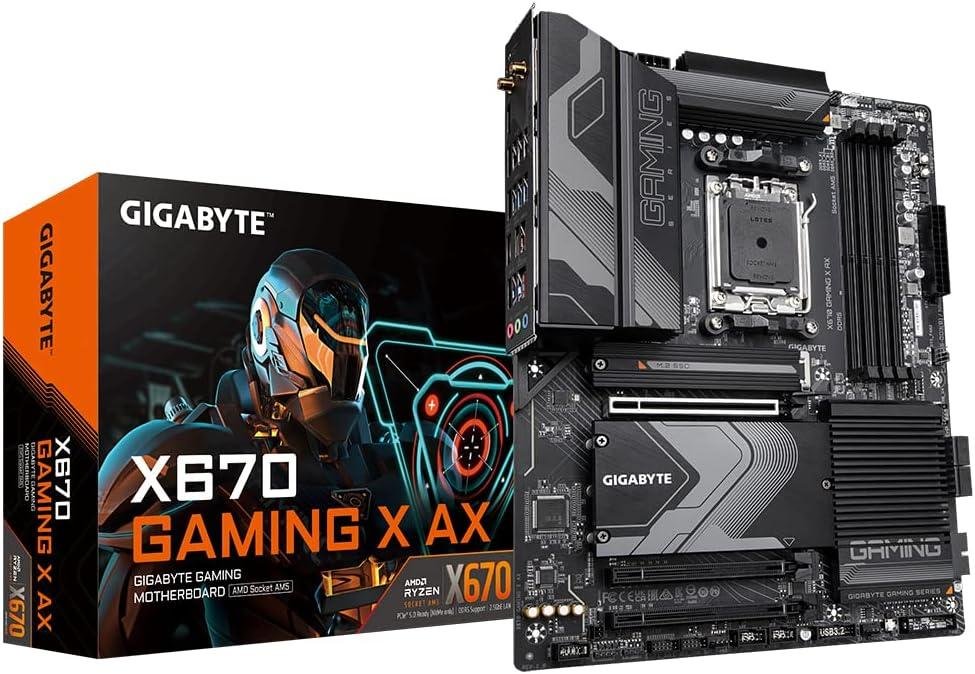

Feature Details Chipset / Socket AMD X670 / AM5 (Wise-Tech) CPU Support AMD Ryzen 7000 / 8000 Series (Midas Computer Center, Wise-Tech) Power Delivery Twin 16 + 2 + 2 digital VRM phases (Midas Computer Center, EliteHubs) Memory DDR5 up to 8000 MHz (OC), dual-channel, 4 DIMM slots, up to 128 GB / 192 GB (varies) Storage 1× PCIe 5.0 ×4 M.2, 3× PCIe 4.0 ×4 M.2, 4× SATA III Graphics / PCIe 1× PCIe 4.0 ×16 (×16), plus additional PCIe x16 slots (×4 / ×2 lanes) Networking Wi‑Fi 6E (AMD RZ616 / MT7922A22M), Bluetooth 5.2, up to ~2.4 Gbps; Realtek 2.5 GbE LAN USB Connectivity Back: USB 3.2 Gen1 ×6, USB 3.2 Gen2 ×2, USB‑C Gen2×2 ×1; Internal headers include USB‑C Gen2×2 and USB Gen1/2.0 Audio Realtek HD Audio codec, 7.1‑channel support Cooling & Thermal Mega‑heatpipe VRM heatsinks, M.2 Thermal Guard, Smart Fan 6 with hybrid fan headers & fan stop feature BIOS Features Q‑Flash Plus (BIOS update without CPU/DRAM/GPU), EZ‑Latch slots & M.2, Smart Backup support Extras HDMI 2.1 port, Q‑Flash Plus button, bundled Norton Internet Security, TPM header, ECC unsupported Form Factor ATX (305 × 244 mm) Warranty Typically 1 year (region‑dependent)

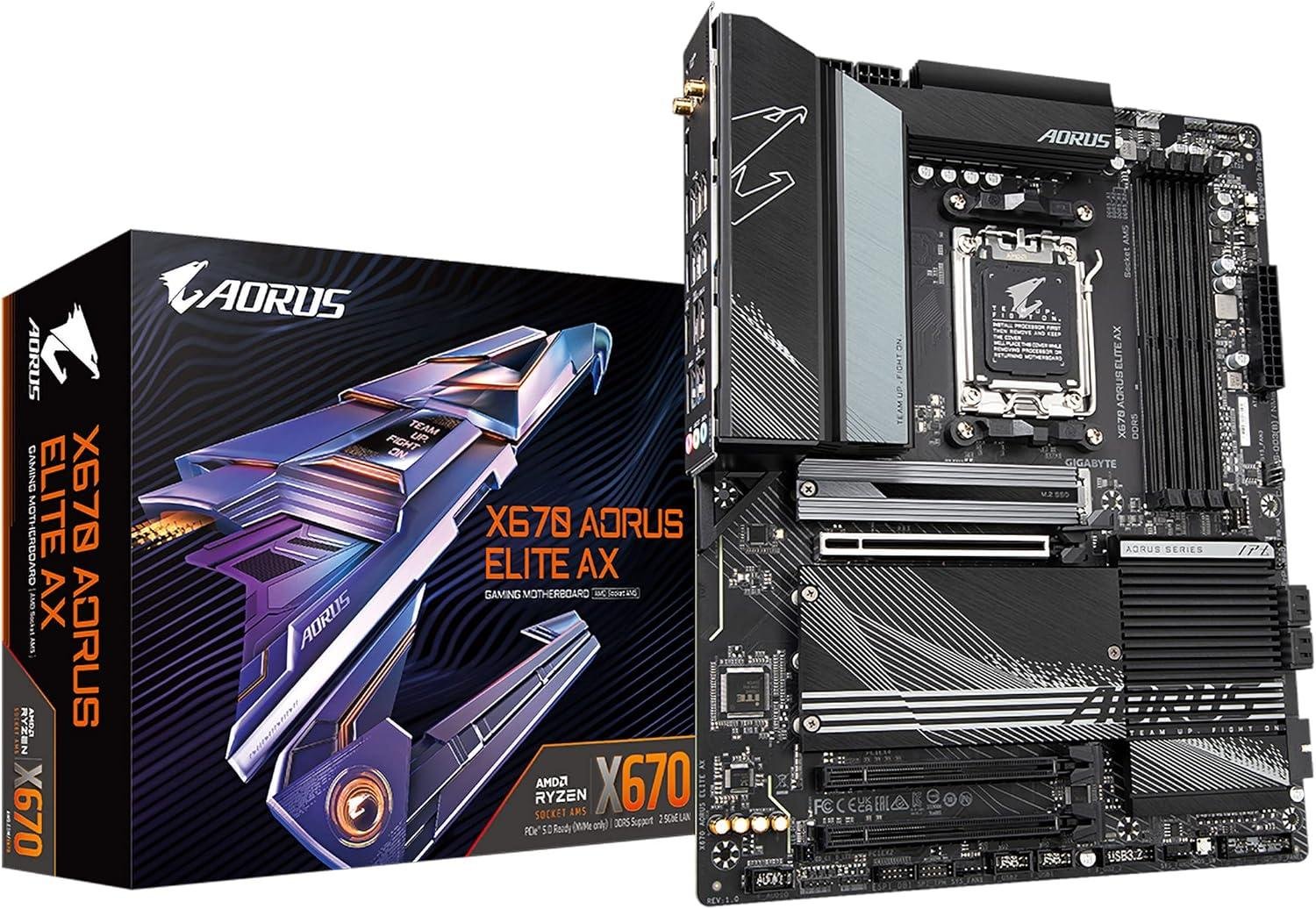

Feature Details Chipset / Socket AMD X670 / AM5 CPU Support AMD Ryzen 7000 series (AM5 socket) Power Delivery 16+2+2 Twin Digital VRM Design (70A DrMOS) Memory Support DDR5 up to 6666MHz (OC), 4× DIMMs, Dual Channel PCIe Slots 1× PCIe 5.0 x16, 1× PCIe 4.0 x4 Storage Support 1× PCIe 5.0 M.2, 2× PCIe 4.0 M.2, 4× SATA III USB Ports USB 3.2 Gen 2×2 Type-C, Gen 2 Type-A/C, Gen 1 & 2.0 Wi‑Fi & Bluetooth Intel Wi‑Fi 6E + Bluetooth 5.2 Ethernet Realtek 2.5 GbE LAN Audio Realtek ALC1220 HD Audio codec BIOS Features Q-Flash Plus (BIOS update without CPU), Dual BIOS Form Factor ATX RGB & Software RGB Fusion 2.0, Smart Fan 6, EasyTune, APP Center

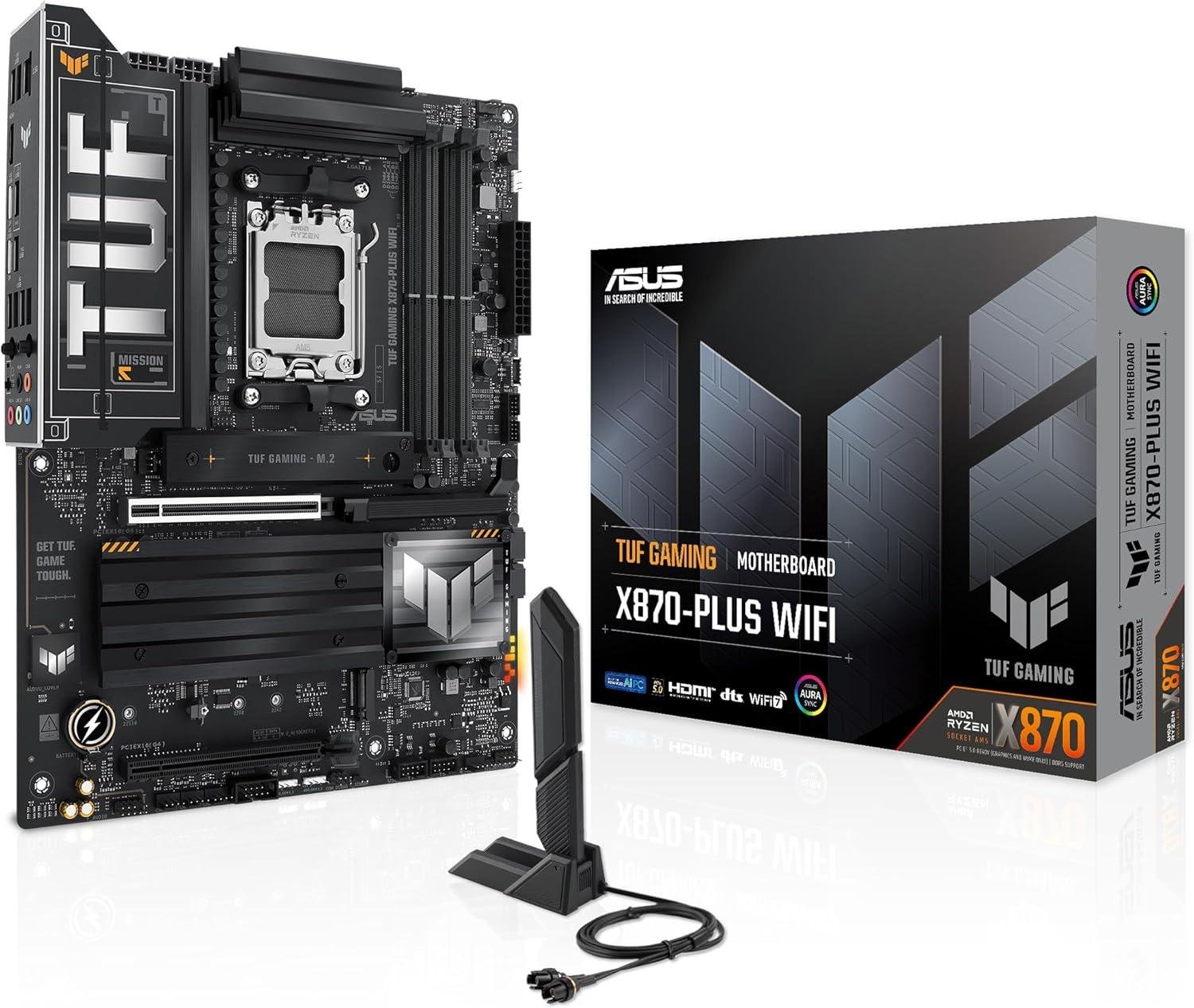

Feature Details Chipset / Socket AMD X870 / AM5 CPU Support Ryzen 7000 / 8000 / 9000 series VRM Design 16 + 2 + 1 phases (80 A SPS) Memory DDR5, up to DDR5‑AEMP Storage 4 x M.2 slots (2 × PCIe 5.0, 2 × PCIe 4.0), 2× SATA GPU Expansion PCIe 5.0 x16, PCIe 4.0 x16 (×4) Wireless / LAN Wi‑Fi 7 (2.9 Gbps), 2.5 Gb Ethernet USB Connectivity 2x USB4, 10 Gbps, 20 Gbps front C with PD, plus USB 5/2.0 Audio Codec Realtek ALC1220P with DTS Cooling Heatsinks, smart fan features, AI Cooling II DIY Features BIOS FlashBack, Q‑Latch, I/O shield etc. Software / AI Tools Asus AI suite, Armoury Crate, Aura Sync
Brand GIGABYTE Model X570 UD CPU Socket Type AM4 CPU Type AMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen/2nd Gen Ryzen / 3nd Gen Ryzen with Radeon Vega Graphics/2nd Gen Ryzen with Radeon Vega Graphics/Ryzen with Radeon Vega Graphics Processors
* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.Chipset AMD X570 Number of Memory Slots 4x288pin (DDR4) Memory Standard 3rd Generation AMD Ryzen processors:
Support for DDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors:
Support for DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modulesMaximum Memory Supported 128GB Channel Supported Dual Channel PCI Express 4.0 x16 Integrated in the CPU (PCIEX16):
- 3rd Generation AMD Ryzen processors:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
- 2nd Generation AMD Ryzen processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
Integrated in the Chipset (PCIEX4/PCIEX1)
2 x PCI Express x16 slots, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
* For 3rd Generation AMD Ryzen processors only.PCI Express x1 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
* For 3rd Generation AMD Ryzen processors only.Serial ATA (SATA) 6 x SATA 6Gb/s M.2 Integrated in the CPU:
- 3rd Generation AMD Ryzen processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
- 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)SATA RAID 0/1/10 Onboard Video Chipset Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Maximum shared memory of 16GB
Note: For 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors only.Audio Chipset Realtek ALC887 Audio Channels 2/4/5.1-channel LAN Chipset Realtek GbE LAN chip Max LAN Speed 1Gbps Back I/O Ports 1 x PS/2 keyboard/mouse port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
3 x audio jacksOnboard USB 2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headersOther Connectors 1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumperForm Factor ATX LED Lighting RGB Dimensions (W x L) 12.0" x 9.6" Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectorWindows 11 Supported
