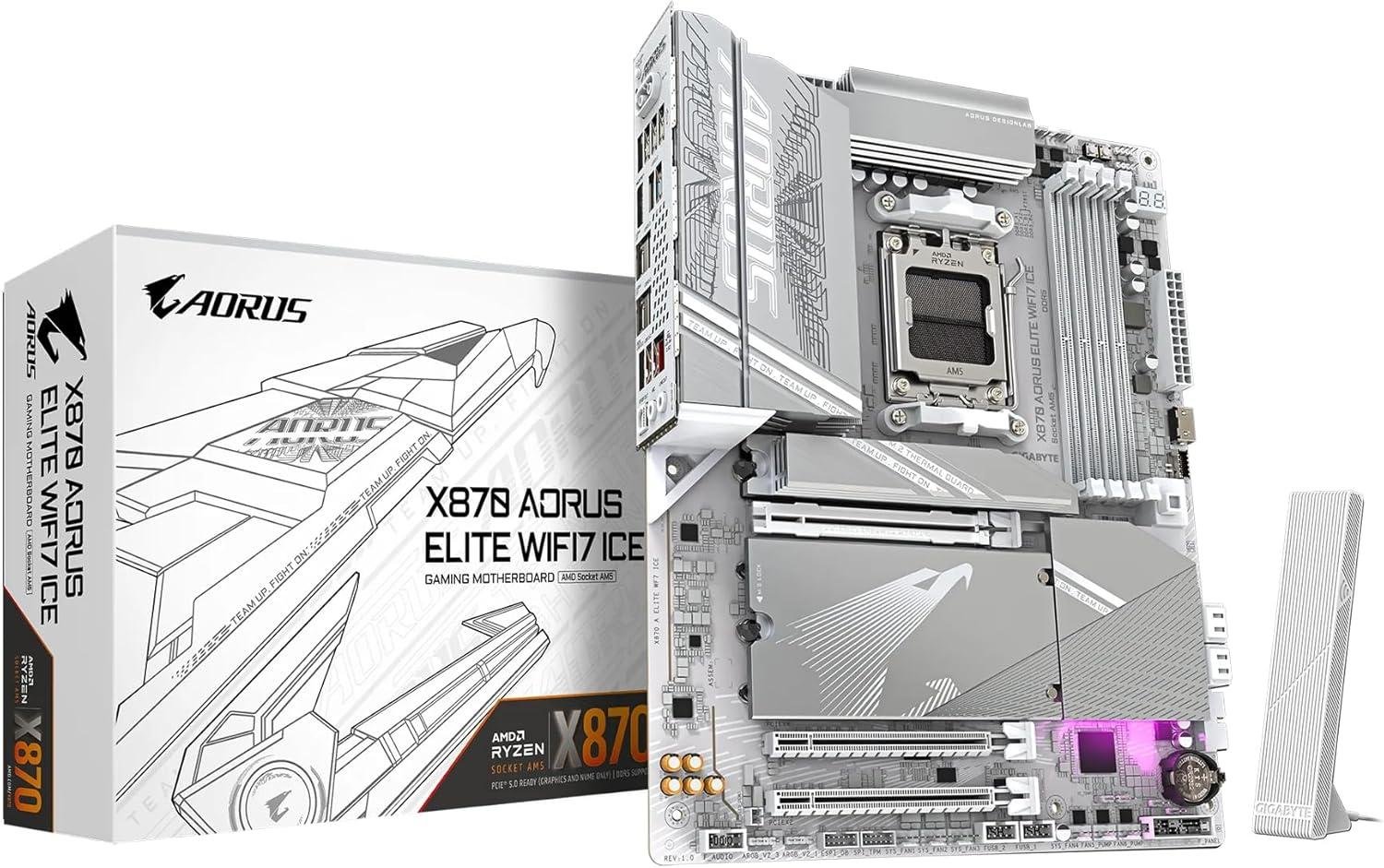

Feature Specification CPU & Chipset AMD Socket AM5; supports Ryzen 7000 / 8000 / 9000 Series; AMD X870 chipset Memory (RAM) 4 × DDR5 DIMM (dual-channel), up to 256 GB (64 GB per slot); speeds up to DDR5-8200 OC; supports AMD EXPO & Intel XMP VRM & PCB 16+2+2 Digital Twin VRM design; 6-layer PCB with 2× copper; VRM Thermal Armor Advanced & M.2 Thermal Guard L Storage 4 × M.2 slots (3 × PCIe 5.0 ×4, 1 × PCIe 4.0 ×4); 4 × SATA 6 Gb/s (RAID 0/1/5/10) Expansion Slots 1 × PCIe 5.0 ×16 (reinforced PCIe UD Slot X), 1 × PCIe 4.0 ×4, 1 × PCIe 3.0 ×2 I/O Ports (Rear) 2 × USB4 Type-C (DP-Alt), 2 × USB 3.2 Gen2, 4 × USB 3.2 Gen1, 4 × USB 2.0, HDMI 2.1, audio jacks + S/PDIF, Q-Flash Plus button, 1 × 2.5 GbE LAN Internal Headers Front USB-C 3.2 Gen2x2, USB 3.2 Gen1 headers, USB 2.0 headers, Sensor Panel Link HDMI output Networking 2.5 GbE LAN, Wi-Fi 7, Bluetooth 5.4 Audio Realtek ALC1220 codec, 7.1-channel HD audio, audiophile-grade capacitors, S/PDIF out Cooling & DIY Features EZ-Latch Plus (PCIe & M.2 tool-less design), EZ-Latch Click, EZ-Debug Zone, Wi-Fi EZ-Plug, Smart Fan 6 with 8 headers, Q-Flash Plus Graphics Output HDMI 2.1 (up to 4K @60 Hz), USB4 Type-C supports up to 4K @240 Hz Form Factor ATX (305 × 244 mm) Special Features PCIe UD Slot X (10× strength), RGB/ARGB headers, Active OC Tuner in BIOS, AORUS Control Center, Windows 11 support
لن يتم نشر عنوان بريدك الإلكتروني. الحقول المطلوبة مشار إليها بـ *
يرجى تسجيل الدخول لكتابة تقييم!
يبدو أنه لا توجد تقييمات حتى الآن.
Feature Specification CPU & Chipset Intel LGA 1700 socket; supports 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors; Intel Z790 chipset VRM & Power Design 16+1+1 phases digital VRM; 6-layer PCB with 2X copper; 8+8 phases parallel power design Memory (RAM) 4 × DDR4 DIMM slots (dual-channel); up to 128 GB; supports XMP 3.0 memory modules Storage 3 × PCIe 4.0 ×4 M.2 slots with Thermal Guard; 6 × SATA 6 Gb/s ports (RAID 0/1/5/10) Expansion Slots 1 × PCIe 5.0 ×16 slot (reinforced); 2 × PCIe 4.0 ×16 slots; 2 × PCIe 3.0 ×1 slots Networking 2.5 GbE LAN; no Wi-Fi Rear I/O Ports 2 × USB 2.0; 4 × USB 3.2 Gen 1; 1 × USB 3.2 Gen 2; 1 × USB 3.2 Gen 2x2 Type-C; 1 × HDMI 2.0; 1 × DisplayPort; 1 × RJ-45 LAN; 3 × audio jacks; 1 × S/PDIF; 1 × Q-Flash Plus button Internal Headers 1 × USB 3.2 Gen 1 Type-C; 2 × USB 3.2 Gen 1; 2 × USB 2.0; 1 × USB 3.2 Gen 2x2 Type-C; 1 × USB 3.2 Gen 2; 1 × RGB LED header; 1 × Addressable LED header; 1 × TPM header; 1 × Clear CMOS jumper Audio Realtek ALC897 codec; 7.1-channel HD audio; high-end audio capacitors; S/PDIF out Cooling & DIY Features Smart Fan 6; multiple temperature sensors; hybrid fan headers with FAN STOP; EZ-Latch PCIe 4.0 ×16 slot with quick release design; M.2 Thermal Guard Form Factor ATX (305 × 244 mm) Special Features Multi-key (configurable BIOS functions); Q-Flash Plus (BIOS update without CPU, memory, or graphics card); RGB Fusion (addressable and RGB LED headers)
Feature Specification CPU & Chipset AMD Socket AM5; supports Ryzen 7000 / 8000 / 9000 Series; AMD X870E chipset VRM & Power Design 16+2+2 Digital Twin VRM; 80A Smart Power Stages; 6-layer PCB with 2× copper Memory (RAM) 4 × DDR5 DIMM slots (dual-channel); up to 256 GB; speeds up to DDR5-8000 OC; supports AMD EXPO & Intel XMP Storage 3 × M.2 slots (3 × PCIe 5.0 ×4); 1 × M.2 slot (PCIe 4.0 ×4); 4 × SATA 6 Gb/s (RAID 0/1/10) Expansion Slots 1 × PCIe 5.0 ×16 (reinforced PCIe UD Slot); 1 × PCIe 4.0 ×4; 1 × PCIe 3.0 ×4 Networking 2.5 GbE LAN; Wi-Fi 7 with ultra-high gain antenna; Bluetooth 5.4 Rear I/O Ports 2 × USB4 Type-C (DP-Alt); 1 × USB 3.2 Gen2; 3 × USB 3.2 Gen1; 4 × USB 2.0; HDMI 2.1; S/PDIF; Q-Flash Plus button Internal Headers Front USB-C 20Gb/s; USB 3.2 Gen1/2 headers; USB 2.0 headers; RGB/ARGB headers; multiple fan/pump headers Audio Realtek ALC1220 codec; 8-channel HD audio; audiophile-grade capacitors; S/PDIF out Cooling & DIY Features VRM Thermal Armor Advanced; M.2 Thermal Guard L; M.2 Thermal Guard Extended; EZ-Latch Plus (PCIe & M.2 tool-less); EZ-Latch Click; EZ-Debug Zone; Smart Fan 6; Wi-Fi EZ-Plug Form Factor ATX (305 × 244 mm) Special Features AORUS AI SNATCH (one-click DDR5 performance boost); Q-Flash Plus; Windows 11 support
Feature Specification CPU & Chipset AMD Socket AM5; supports Ryzen 7000 / 8000 / 9000 Series; AMD X870E chipset VRM & Power Design 16+2+2 Digital Twin VRM; 110A SPS power stages Memory (RAM) 4 × DDR5 DIMM slots (dual-channel); up to 256 GB; speeds up to DDR5-8600 OC; supports AMD EXPO & Intel XMP Storage 3 × M.2 slots (3 × PCIe 5.0 ×4); 4 × SATA 6 Gb/s (RAID 0/1/10) Expansion Slots 1 × PCIe 5.0 ×16 (reinforced PCIe UD Slot); additional PCIe 4.0/3.0 slots Networking 5 GbE LAN; Wi-Fi 7 with ultra-high gain antenna; Bluetooth 5.4 Rear I/O Ports 2 × USB4 Type-C (DP-Alt); 4 × USB 3.2 Gen2; 4 × USB 3.2 Gen1; 2 × USB 2.0; HDMI 2.1; S/PDIF; Q-Flash Plus button Internal Headers Front USB-C 20Gb/s; USB 3.2 Gen1/2 headers; USB 2.0 headers; RGB/ARGB headers; multiple fan/pump headers Audio Realtek ALC1220 codec; 8-channel HD audio; audiophile-grade capacitors; S/PDIF out Cooling & DIY Features VRM Thermal Armor; M.2 Thermal Guard; EZ-Latch Plus (PCIe & M.2 tool-less); EZ-Latch Click; EZ-Debug Zone; Smart Fan 6; Wi-Fi EZ-Plug Form Factor ATX (305 × 244 mm) Special Features AORUS AI SNATCH (one-click DDR5 performance boost); Q-Flash Plus; Windows 11 support
Feature Specification CPU & Chipset AMD Socket AM5; supports Ryzen 7000 / 8000 / 9000 Series; AMD X870 chipset VRM & Power Design 14+2+2 Digital Twin VRM power phase design Memory (RAM) 4 × DDR5 DIMM slots (dual-channel), up to 256 GB, speeds up to DDR5-8200 OC; supports AMD EXPO & Intel XMP Storage 3 × M.2 slots (1 × PCIe 5.0 ×4, 2 × PCIe 4.0 ×4); 4 × SATA 6 Gb/s (RAID 0/1/10) Expansion Slots 1 × PCIe 5.0 ×16 (reinforced PCIe UD Slot), additional PCIe 4.0/3.0 slots Networking 2.5 GbE LAN, Wi-Fi 7, Bluetooth 5.4 Rear I/O Ports 2 × USB4 Type-C (DP-Alt), 1 × USB 3.2 Gen2, 3 × USB 3.2 Gen1, 4 × USB 2.0, HDMI 2.1, RJ-45 LAN, Audio jacks + S/PDIF, Q-Flash Plus button Internal Headers Front USB-C 3.2 Gen2x2, USB 3.2 Gen1 headers, USB 2.0 headers, RGB/ARGB headers, multiple fan/pump headers Audio 8-channel HD audio, premium capacitors, S/PDIF out Cooling & DIY Features VRM Thermal Armor, M.2 Thermal Guard, EZ-Latch Plus (PCIe & M.2 tool-less), EZ-Latch Click, EZ-Debug Zone, Smart Fan 6 Form Factor ATX (305 × 244 mm) Special Features RGB Fusion, AORUS AI SNATCH (DDR5 auto-tuning), Q-Flash Plus, multiple over-current/over-temp protections, Windows 11 support
