Intel：LGA115X/1200/1700/1851/2011/2066
AMD：AM4/AM5

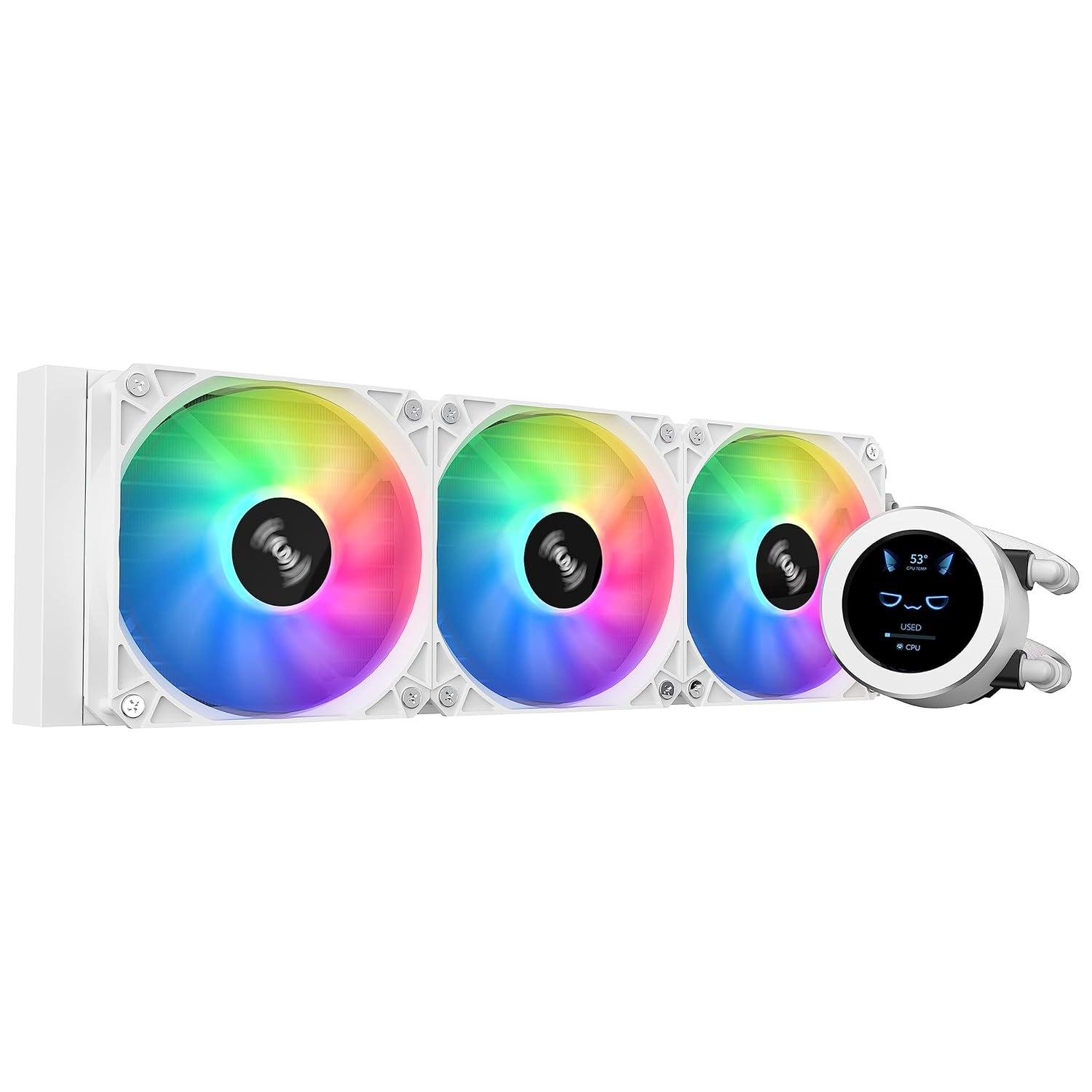

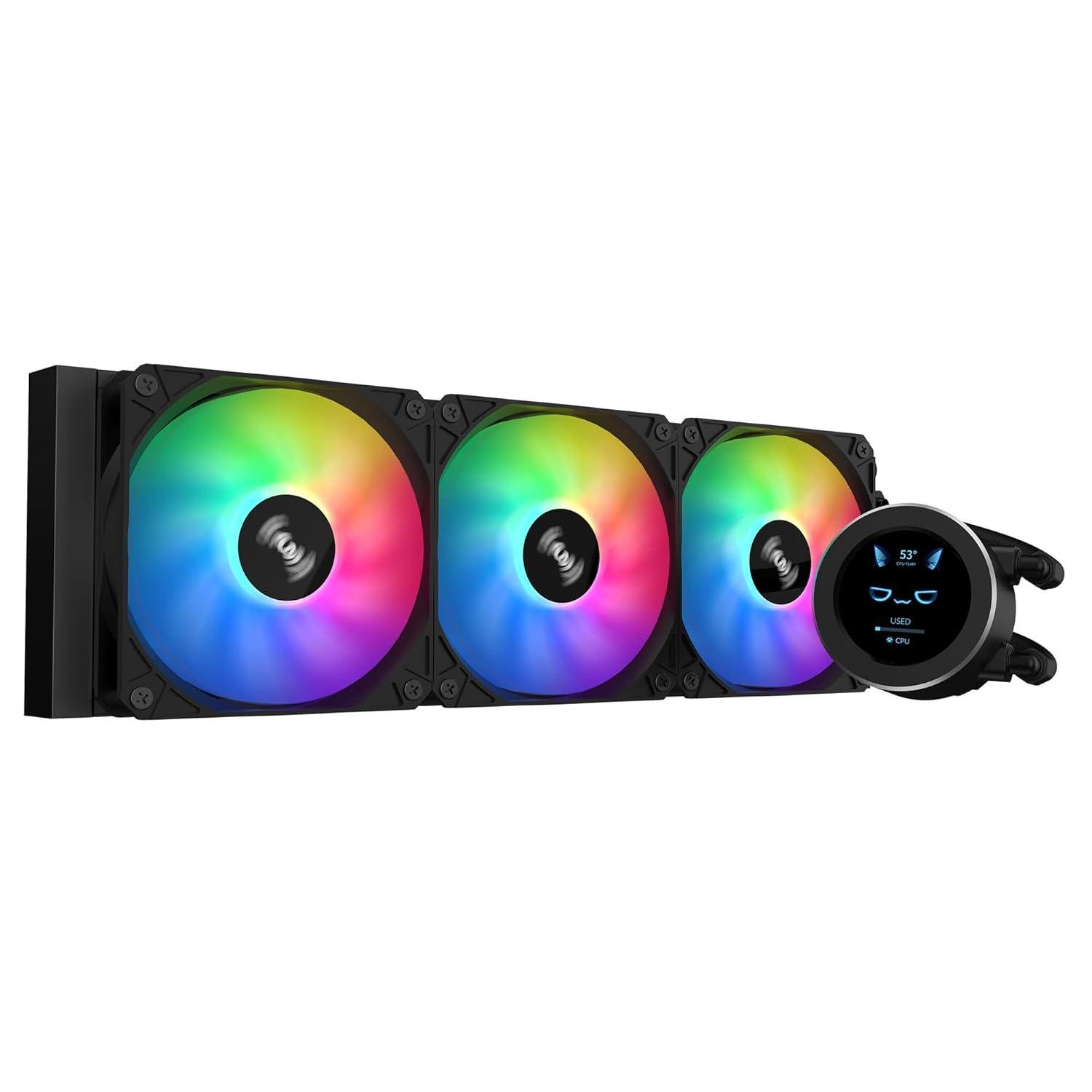

• 2.1 inch IPS display screen
• New self-developed intelligent control software
• 3-stage motor water pump for performance and quietness
• All-in-one cable for fans on radiator
• Radiator made of Aluminum
• High-temperature resistance and pressure-resistance synthetic tubes

Name

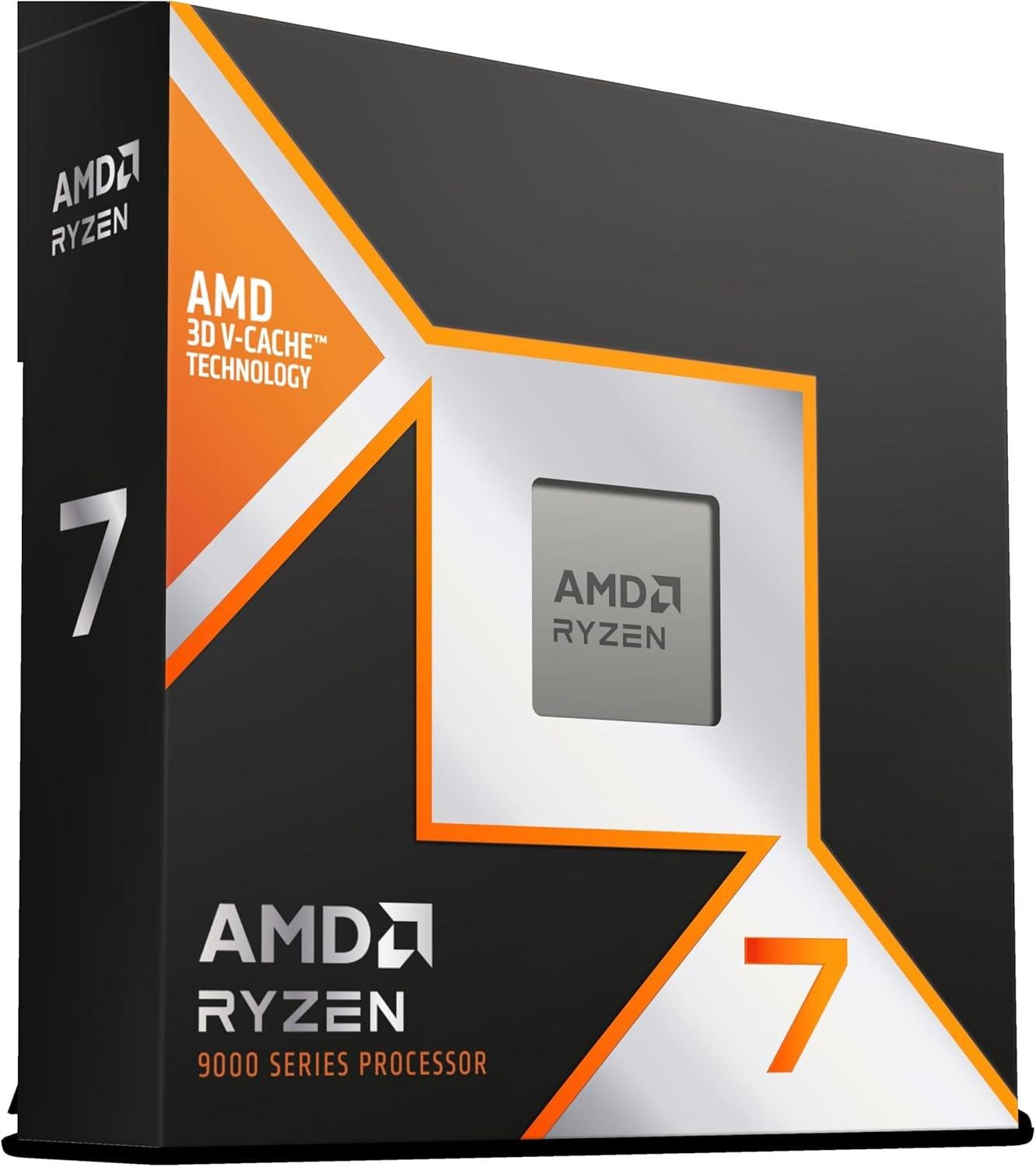

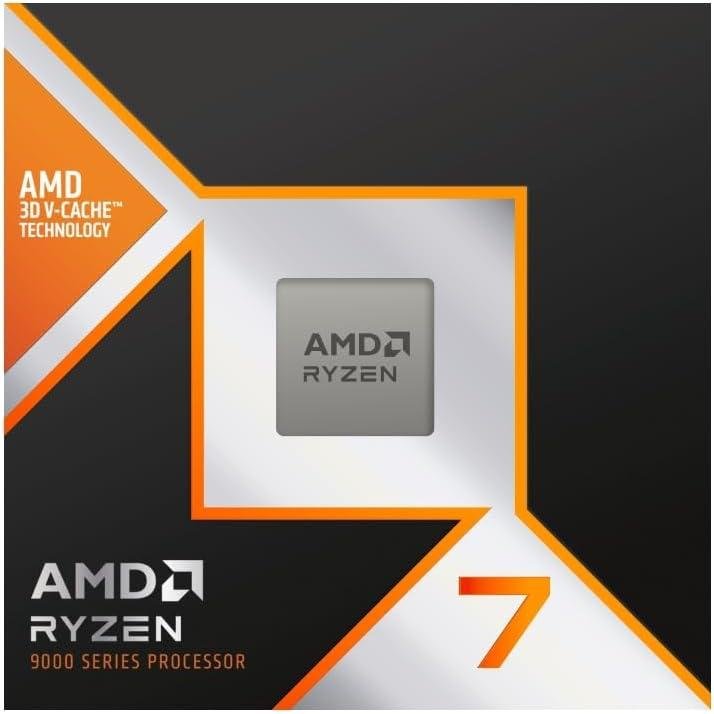

AMD Ryzen™ 7 9800X3D

• General Specifications

  Name

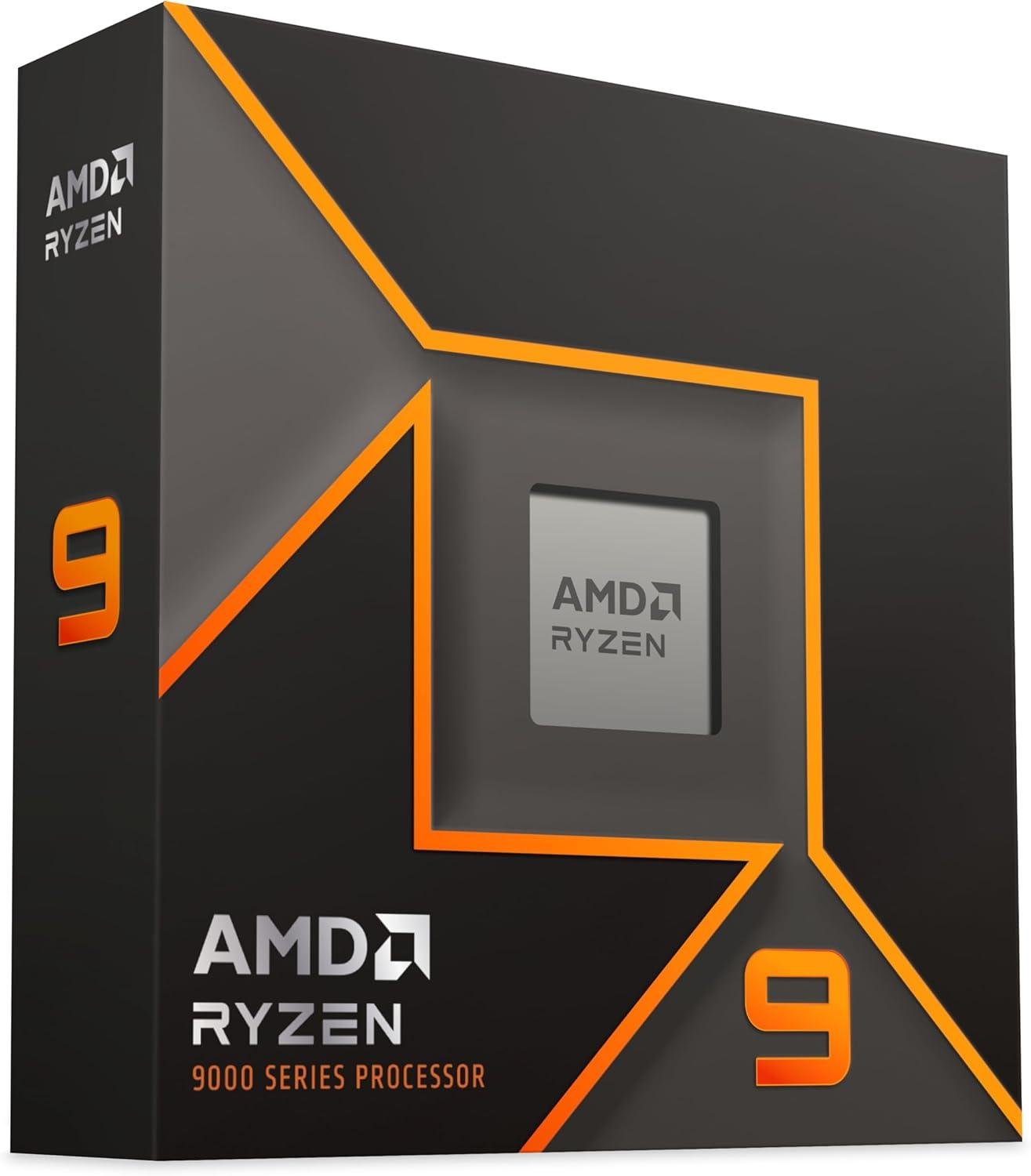

  AMD Ryzen™ 9 9950X

  Family

  Ryzen

  Series

  Ryzen 9000 Series

  Form Factor

  Desktops , Boxed Processor

  Market Segment

  Enthusiast Desktop

  AMD PRO Technologies

  No

  Regional Availability

  Global

  Former Codename

  Granite Ridge AM5

  Processor Architecture

  Zen 5

  # of CPU Cores

  16

  Multithreading (SMT)

  Yes

  # of Threads

  32

  Max. Boost Clock

  Up to 5.7 GHz

  Base Clock

  4.3 GHz

  L1 Cache

  1280 KB

  L2 Cache

  16 MB

  L3 Cache

  64 MB

  Default TDP

  170W

  Processor Technology for CPU Cores

  TSMC 4nm FinFET

  Processor Technology for I/O Die

  TSMC 6nm FinFET

  Package Die Count

  3

  Unlocked for Overclocking

  Yes

  AMD EXPO™ Memory Overclocking Technology

  Yes

  Precision Boost Overdrive

  Yes

  Curve Optimizer Voltage Offsets

  Yes

  AMD Ryzen™ Master Support

  Yes

  CPU Socket

  AM5

  Supporting Chipsets

  A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

  CPU Boost Technology

  Precision Boost 2

  Instruction Set

  x86-64

  Supported Extensions

  AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

  Thermal Solution (PIB)

  Not Included

  Recommended Cooler

  Liquid cooler recommended for optimal performance

  Max. Operating Temperature (Tjmax)

  95°C

  Launch Date

  08/15/2024

  *OS Support

  Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Intel：LGA115X/1200/1700/1851/2011/2066
AMD：AM4/AM5

ntel：LGA115X/1200/1700/1851/2011/2066
AMD：AM4/AM5

Digital display for temperature

• 4Xø6MM heat pipes

• 12CM ARGB PWM fnas

• Support intel LGA/1700/1200/115X/1366AMD AM5/AM4

• Fan speed 800-1800+10%

• 72.6 CFM

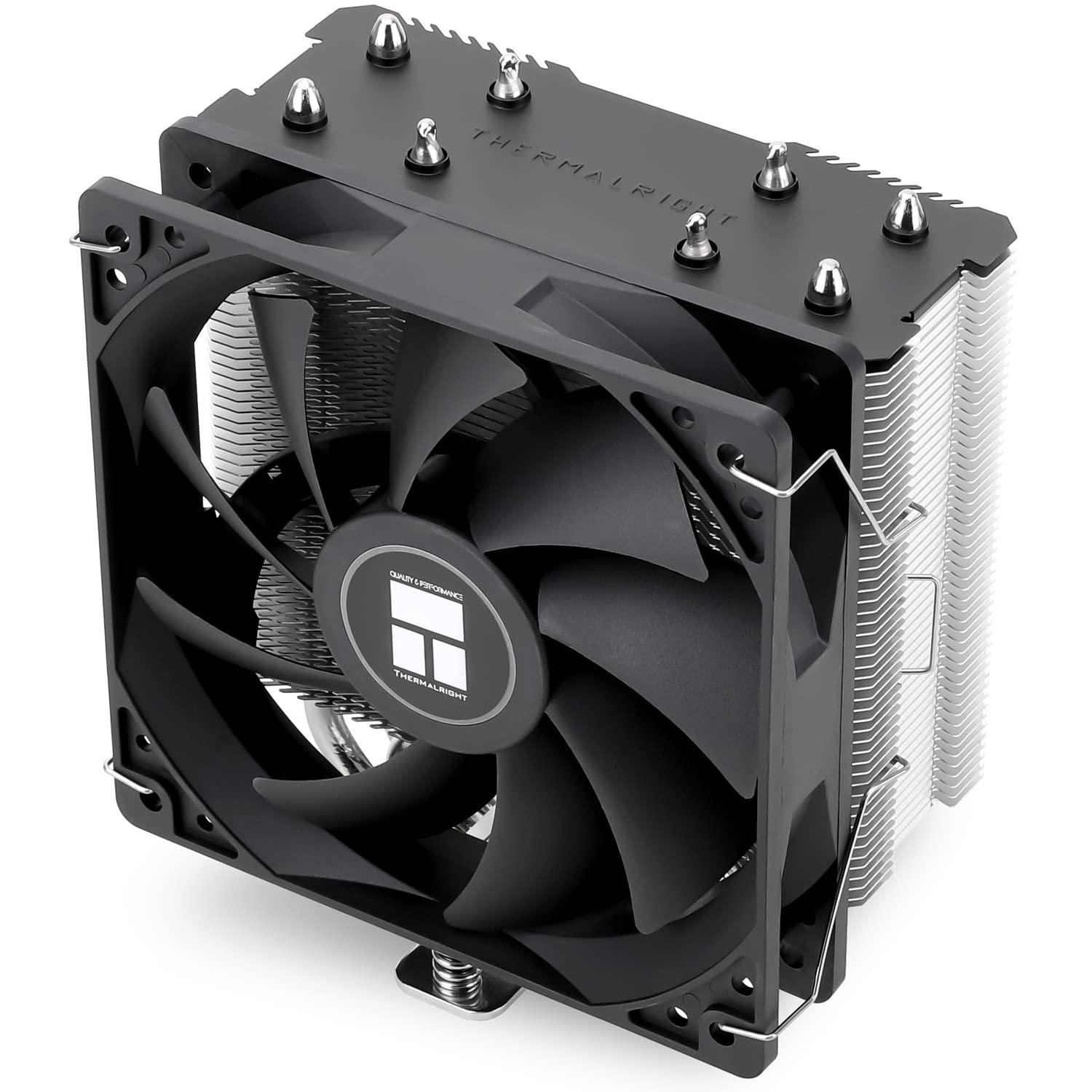

Technical Spec :
Heatsink Specifications:
Dimension: L120 mm x W46 mm x H151 mm
Heat pipes: 6mm heatpipe x 4 units

TL-P12W-S FAN Spec：
Dimension: L120 mm x W120 mm x H25 mm
Rated Speed: 2000 RPM±10% (MAX)
Noise Level: 29.8 dBA
Air Flow: 70.84 CFM (MAX)
Air Pressure: 2.63 mm H2O (MAX)
Connector: 4 Pin (PWM Fan connector)
ARGB Connector：3 PIN 5V
Bearing Type : S-FDB Bearing

Technical Spec :
Heatsink Specifications:
Dimension: L120 mm x W46 mm x H151 mm
Heat pipes: 6mm heatpipe x 4 units

TL-P12-S FAN Spec：
Dimension: L120 mm x W120 mm x H25 mm
Rated Speed: 2000 RPM±10% (MAX)
Noise Level: 29.8 dBA
Air Flow: 70.84 CFM (MAX)
Air Pressure: 2.63 mm H2O (MAX)
Connector: 4 Pin (PWM Fan connector)
ARGB Connector：3 PIN 5V
Bearing Type : S-FDB Bearing

Aigo AT750 Power Supply 750W, 80 Plus Bronze Certification
