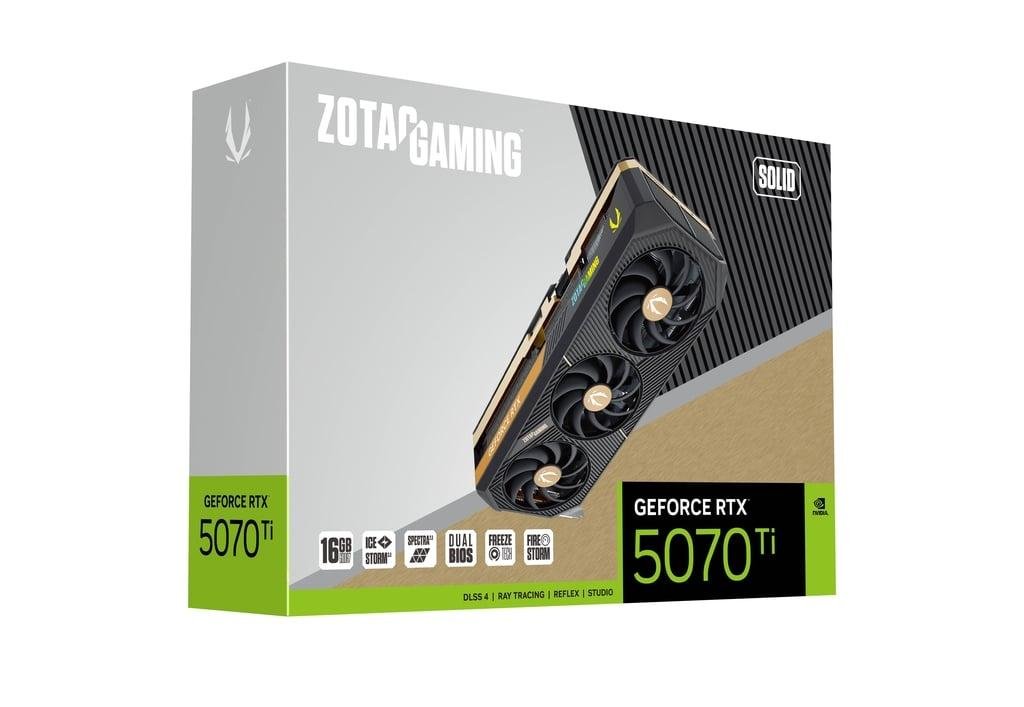

The ZOTAC GAMING GeForce RTX™ 5070 Ti SOLID is a no-frills, all-action package to sate your need for performance and speed. Featuring NVIDIA‘s cutting-edge Blackwell architecture and features like DLSS4 and flagship-level cooling solution, the SOLID is built tough and hard-hitting for gaming and beyond.

Feature Highlights:
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- IceStorm 3.0 Advanced Cooling
- Larger Vapor Chamber
- BladeLink Fans
- Reinforced Metal Mid-Frame
- FREEZE Fan Stop, Active Fan Control, Dual BIOS
- SPECTRA 2.0 RGB Lighting
- SPECTRA LINK Lighting Sync port
- Metal Backplate
- Bundled with GPU Support Bracket
- 12V-2x6 Safety Light

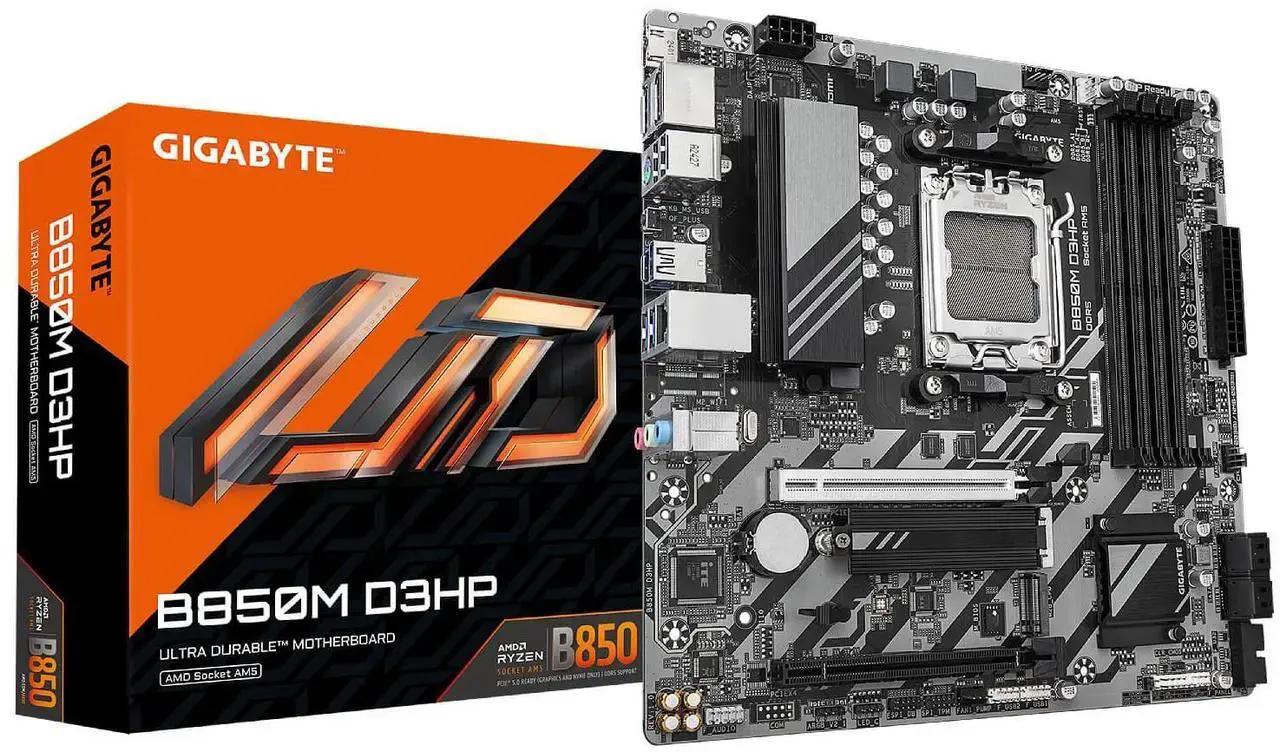

• CPU:
  AMD Socket AM5, support for:
  AMD Ryzen™ 9000 Series Processors/
  AMD Ryzen™ 8000 Series Processors/
  AMD Ryzen™ 7000 Series Processors
  (Go to GIGABYTE’s website for the latest CPU support list.)
• Chipset: AMD B850
• Memory:
  Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
• Onboard Graphics:

  Integrated Graphics Processor with AMD Radeon™ Graphics support:
  – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  ** Support for native HDMI 2.1 TMDS compatible ports.



  – 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz
  * Support for DisplayPort 1.4 version.

  (Graphics specifications may vary depending on CPU support.)
  Support for up to triple-display at the same time

• Audio:

  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.



• LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Expansion Slots:

  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.



  Chipset:
  – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

• Storage Interface:

  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs



  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB:
  CPU:
  – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  – 1 x USB 3.2 Gen 1 port on the back panel
  – 1 x USB 2.0/1.1 port on the back panel
  Chipset:
  – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  – 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors:
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  1 x system fan header
  1 x system fan/water cooling pump header
  2 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x reset jumper
  1 x Clear CMOS jumper
• Back Panel Connectors:

  1 x HDMI port (Note)
  2 x DisplayPorts (Note)
  1 x PS/2 keyboard/mouse port
  1 x Q-Flash Plus button
  1 x USB Type-C® port, with USB 3.2 Gen 1 support
  3 x USB 3.2 Gen 1 ports
  2 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks



  (Note) Actual support may vary by CPU.

• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring:

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.



• BIOS:
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features:

  Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.



  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software:
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Operating System:
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm

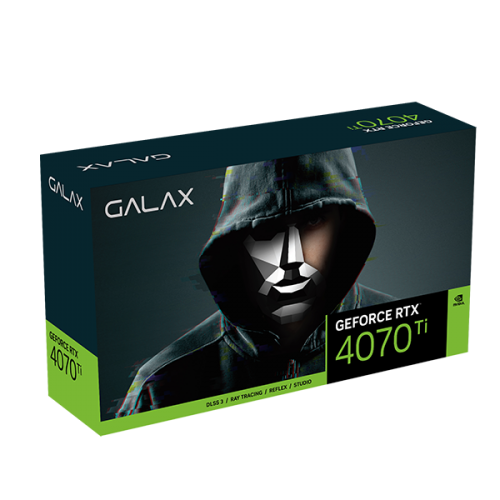

GALAX GeForce RTX™ 4070 Ti EX Gamer 1-Click OC

12GB GDDR6X 192-bit DP*3/HDMI 2.1/DLSS 3

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture, and full ray tracing,  GALAX GeForce RTX 4070 Ti EX Gamer launches as the very first EX Gamer graphics card of the GeForce RTX 40 Series, featuring the latest 7680 CUDA cores and 12GB 192-bit GDDR6X memory interface while elevating the exclusive 1-Click OC clock to 2685MHz through GALAX dedicated software Xtreme Tuner Plus. As for the power design and performance, the latest GeForce RTX™ 4070 Ti EX Gamer is also leveled up with the PCIe Gen5 16-pin power connector which enhances power delivery and unlocks an even greater overclocking potential.

Product Code: 47IOM7MD7AEG

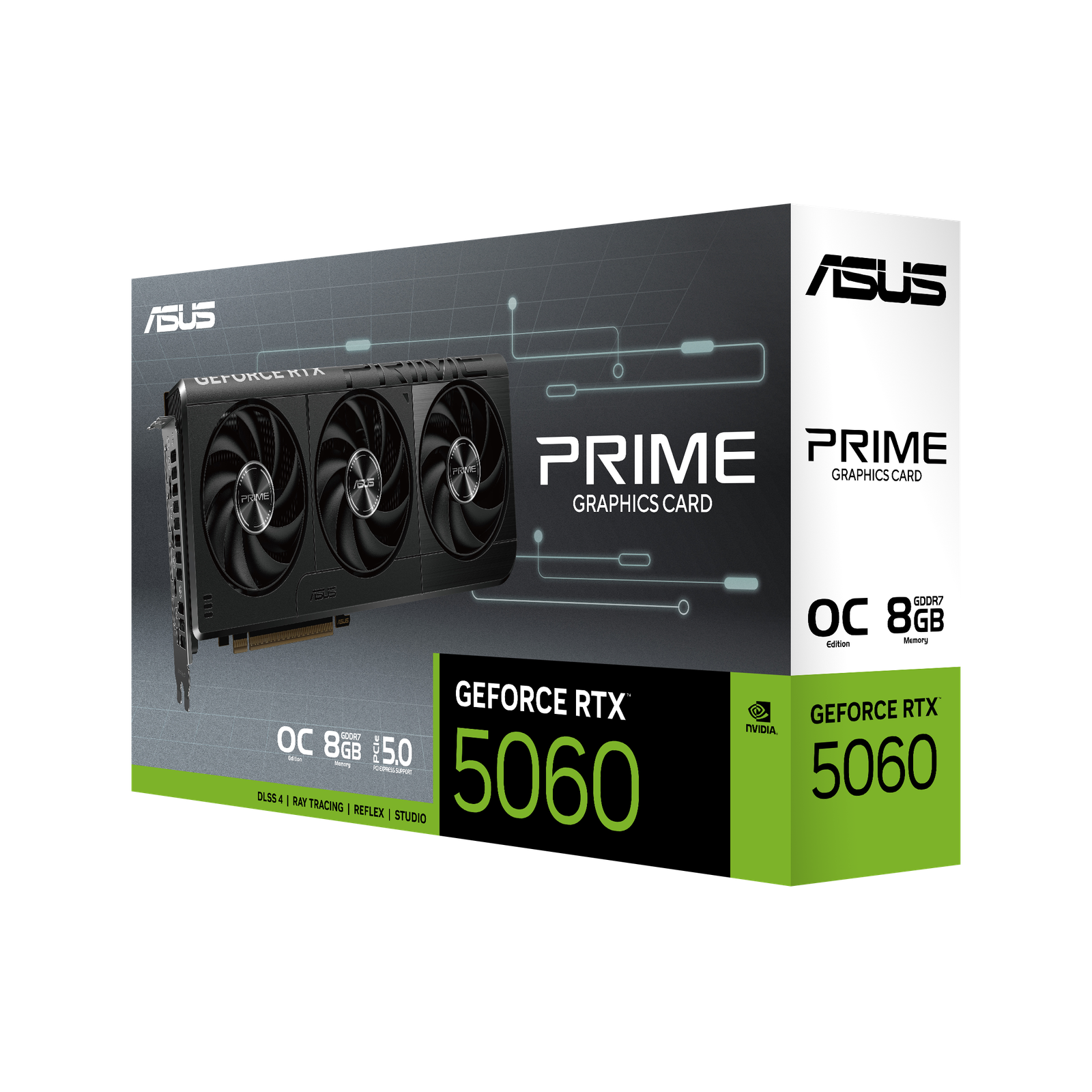

ASUS The SFF-Ready Prime GeForce RTX™ 5060 8GB GDDR7 OC Edition Graphics Card (PCIe® 5.0, 8GB GDDR7, HDMI®/DP 2.1, 2.5-Slot, Axial-tech Fans, Dual BIOS)

• 【Fully Customizable with Open-Source Software】Unlock unlimited customization with the K86's open-source software, giving you complete control over key assignments, FN combinations, screen animations, and key sensitivity. The cloud-driven system ensures automatic updates and seamless integration, so you can personalize every aspect of your typing and gaming experience. Whether you're a casual user or a competitive gamer, the K86's software offers the flexibility to create your ideal setup.
• 【Multi-Device Connectivity & Triple Mode Support】 The K86 features versatile connectivity with USB Type-C wired mode, Bluetooth 5.0, and stable 2.4GHz wireless support. Effortlessly switch between up to 3 devices with a single twist of the CNC multimedia knob. Compatible with Windows,MACOS, and Bluetooth-enabled cell phones or computers, the K86 adapts to your workflow and gaming setup.
• 【Precision CNC Metal Knob for Easy Control】 Take control like never before with the custom CNC aluminum knob. Adjust your display, volume, lighting effects, and more with a simple twist. Its tactile feedback ensures a smooth, satisfying experience, making it perfect for media control or fine-tuning your settings on the fly.
• 【Hot-Swappable TTC Sockets for Ultimate Flexibility】 Customize your typing experience with TTC hot-swappable sockets. Easily swap out switches for linear or tactile switches without soldering, and enjoy a smooth, stable, and quiet typing experience. Compatible with most 3-pin and 5-pin switches, the K86 lets you tailor the feel of your keyboard exactly to your preferences.
• 【Gasket Mount Design & Silent Typing】 The K86 is built with a full gasket mount and full foam padding for a premium typing feel. This design reduces sound and enhances the overall typing experience, making it ideal for both work and play. The quiet, cushioned keystrokes ensure you can type or game for hours without fatigue.
• 【Stunning RGB Lighting with PBT Keycaps】 Enhance your workspace or gaming setup with 27 dynamic RGB lighting effects. Customize your keyboard’s look with vibrant colors using FN key combinations or software controls. The 13 colorful PBT keycaps add a pop of style, while the durable material ensures long-lasting performance.
